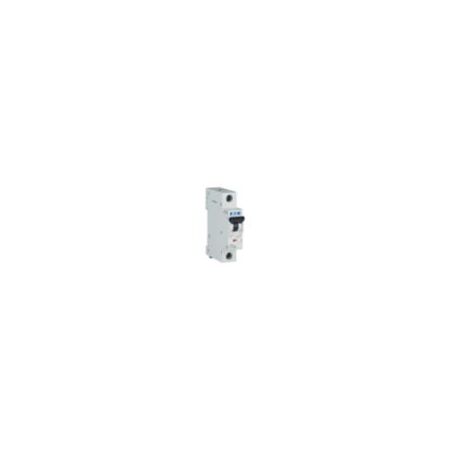

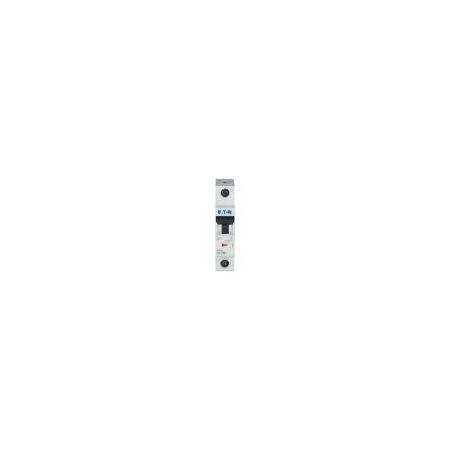

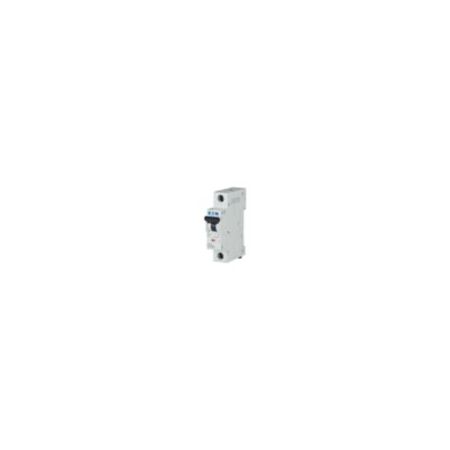

Miniature Circuit Breaker 20A C-Characteristic | Single-Pole | 15 kA Rated Switching Capacity | IP40 Protection by Eaton
Miniature circuit breaker with a 20A C-characteristic and rated switching capacity of 15 kA—ideal for branch circuit protection in industrial settings. Built for safety and compliance, with finger-safe terminals and a wide operating temperature range from -25 °C to 75 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 20A C-Characteristic | Single-Pole | 15 kA Rated Switching Capacity | IP40 Protection by Eaton
Brand: Eaton
SKU: Y7-278562
Alternatively Known As: Miniature Circuit Breaker 20A C-Characteristic, FAZ MCB 20A, Eaton FAZ-C20/1, xEffect FAZ MCB
Technical Specifications
- Product Type: Miniature Circuit Breaker (MCB)
- Number of Poles: 1 (Single-pole)
- Tripping Characteristic: C
- Rated Current (In): 20 A
- Voltage Rating: 240 V AC / 415 V AC, 60 V DC
- Rated Switching Capacity: 15 kA (IEC/EN 60947-2), 10 kA (IEC/EN 60898-1)
- Breaking Capacity: 10 kA (UL1077)
- Frequency Rating: 50-60 Hz
- Rated Insulation Voltage (Ui): 440 V
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Mounting Method: Top-hat rail IEC/EN 60715
- Degree of Protection: IP40 (when fitted), IP20 (IEC)
- Connectable Conductor Cross Section: 1 mm² to 25 mm²
- Terminal Protection: Finger and hand touch safe
- Ambient Operating Temperature: -25 °C to 75 °C
- Lifespan Electrical: 10,000 operations
- Dimensions (H x L x W): 75.5mm x 80mm x 17.7mm
- Weight: 0.111 kg
Key Features
- Single-pole miniature circuit breaker with C tripping characteristic
- Rated current of 20 A
- Rated operational voltage up to 240 V AC / 415 V AC
- Rated switching capacity up to 15 kA (IEC/EN 60947-2)
- Twin-purpose terminals for flexible wiring
- Mounting on top-hat rail IEC/EN 60715
- Finger and hand touch safe terminals compliant with DGUV VS3, EN 50274
- Ambient operating temperature range from -25 °C to 75 °C
- Additional equipment possible for enhanced functionality
Professional Installation Requirements
- Installation must be performed by a qualified electrician in accordance with local electrical codes and standards to ensure safety and compliance.
Applications
- Branch circuits protection in industrial and advanced commercial switchgear
- Use in electrical panels requiring single-pole miniature circuit breakers
Standards & Compliance
- AS/NZS 60898 - Electrical accessories - Circuit-breakers for overcurrent protection for household and similar installations
Environmental Benefits
- Helps prevent electrical faults and fires, contributing to safer energy use
- Complies with RoHS, reducing hazardous substances in electrical equipment
Warranty Information
Standard Eaton warranty against manufacturing defects applies. Please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xEffect FAZ-C20/1 Miniature Circuit Breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
