Miniature Circuit Breaker 20A D Curve | 15kA | IP40 Rated by NHP
Miniature circuit breaker with 20A rated current and D trip curve—ideal for high inrush current applications. Built for residential, commercial, and industrial use, with 15kA short circuit capacity and IP40 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

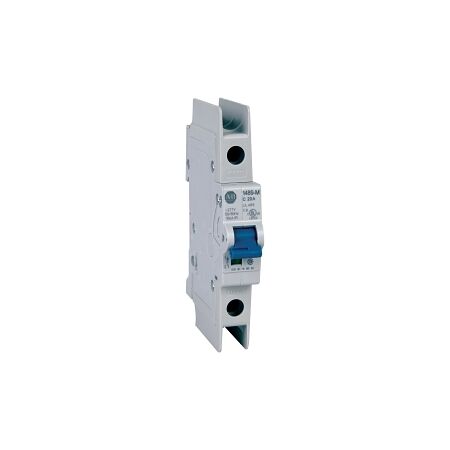

Product Name/Title: Allen-Bradley Miniature Circuit Breaker UL489 10kA 1Pole 20A D Curve
Brand: NHP
SKU: 1489M1D200
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 20 A
- Number of Poles: 1
- Trip Curve: D
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 15 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Rated Impulse Withstand Voltage: 4 kV
- Pollution Degree: 3
- Dimensions (H x L x W): 111mm x 74mm x 17.5mm
- Weight: 0.13 kg
Key Features
- Rated current of 20 A with a D trip curve for high inrush current applications.
- Short circuit breaking capacity of 15 kA.
- IP40 rated for protection against solid objects larger than 1 mm.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently within a wide temperature range of -25 to 55 °C.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley Miniature Circuit Breaker UL489 10kA 1Pole 20A D Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
Non-Returnable & Non-Cancellable
