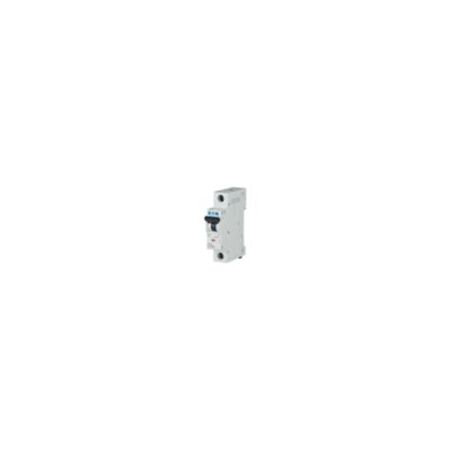

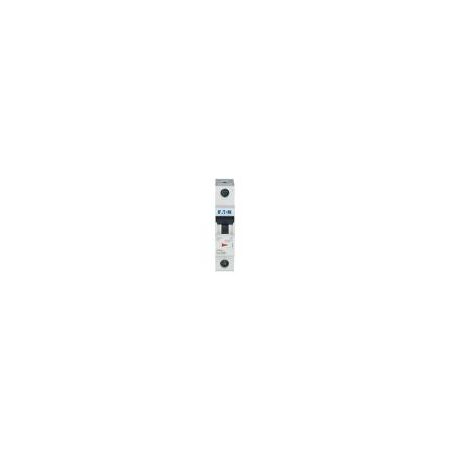

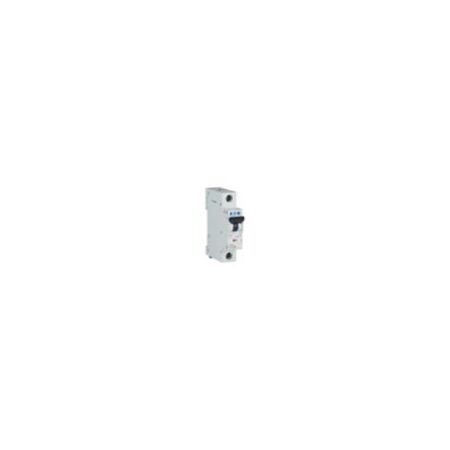

Miniature Circuit Breaker 25A | 1-Pole | Tripping Characteristic C | IP40 by Eaton
Miniature circuit breaker rated at 25A with a single-pole design and tripping characteristic C—ideal for branch circuit protection in industrial and commercial applications. Built for safety and efficiency, it features a high breaking capacity of 15 kA and is designed for easy installation on top-hat rails.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 25A | 1-Pole | Tripping Characteristic C | IP40 by Eaton
Brand: Eaton
SKU: Y7-278563
Alternatively Known As: FAZ-C25/1 MCB, Eaton FAZ Miniature Circuit Breaker, xEffect FAZ 25A breaker, Eaton 1-pole circuit breaker
Technical Specifications
- Product Type: Miniature Circuit Breaker (MCB)
- Number of Poles: 1
- Tripping Characteristic: C
- Rated Current: 25 A
- Voltage Rating AC: 240 V AC / 415 V AC
- Voltage Rating DC: 60 V DC per pole
- Rated Switching Capacity: 10 kA (IEC/EN 60898-1), 15 kA (IEC/EN 60947-2)
- Breaking Capacity: 10 kA (UL1077)
- Frequency Rating: 50-60 Hz
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Mounting Method: Top-hat rail IEC/EN 60715
- Degree of Protection: IP40 (fitted), IP20 (IEC standard)
- Connectable Conductor Cross Section: 1 mm² to 25 mm²
- Electrical Lifespan: 10,000 operations
- Ambient Operating Temperature: -25 °C to 75 °C
- Terminal Protection: Finger and hand touch safe
- Dimensions (H x L x W): 75.5mm x 80mm x 17.7mm
- Weight: 0.115 kg
Key Features
- Single-pole miniature circuit breaker with tripping characteristic C
- Rated current: 25 A
- Voltage rating: 240 V AC / 415 V AC, 60 V DC per pole
- Rated switching capacity up to 15 kA (IEC/EN 60947-2)
- Twin-purpose terminals with connectable conductor cross section from 1 mm² to 25 mm²
- Mounting on Top-hat rail IEC/EN 60715
- Degree of protection: IP40 when fitted, IP20 IEC standard
- Ambient operating temperature range: -25 °C to 75 °C
- Electrical lifespan: 10,000 operations
- Additional equipment possible
- Complies with multiple international standards including IEC/EN 60898, UL, CSA
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper operation.
Applications
- Branch circuits protection in industrial and advanced commercial applications
- Switchgear for industrial and advanced commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- High electrical efficiency reduces energy loss during operation
- Durable design extends product lifespan, reducing waste
- Compliant with RoHS, ensuring restriction of hazardous substances
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xEffect FAZ-C25/1 Miniature Circuit Breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
