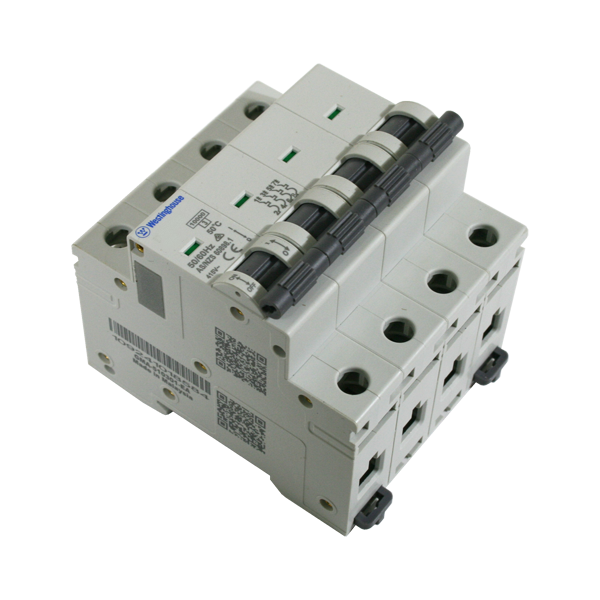

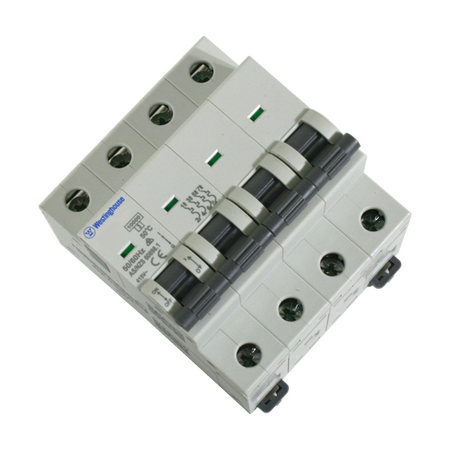

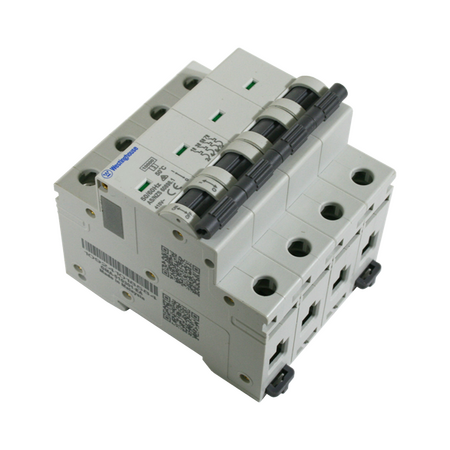

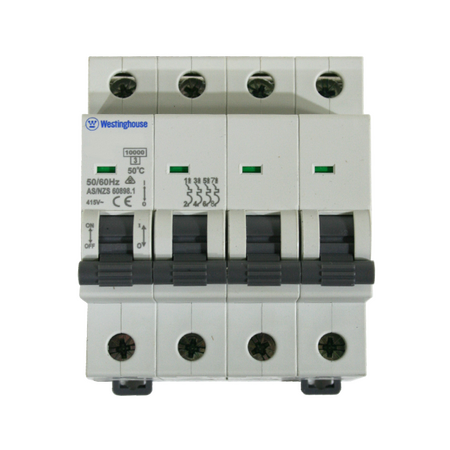

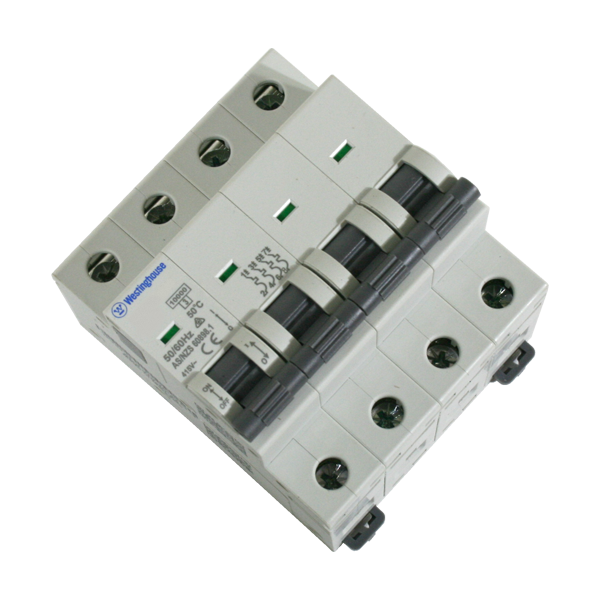

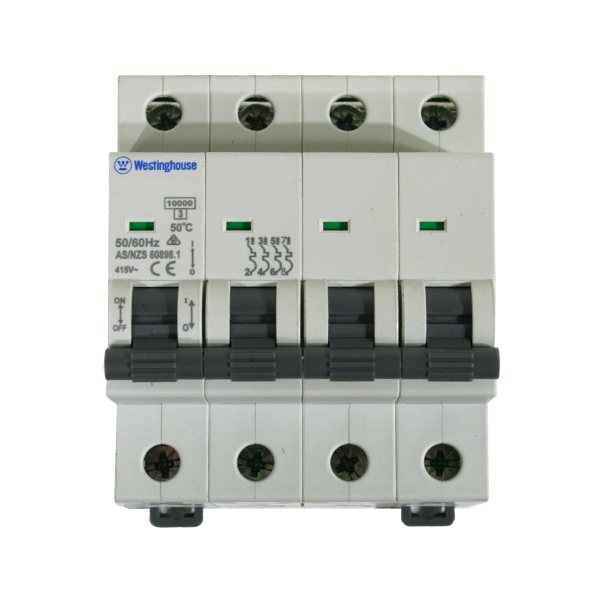

Miniature Circuit Breaker 2A 4P | C Curve Trip | 10kA Breaking Capacity | Eltech
Miniature circuit breaker with 2A rated current and 4 pole configuration—ideal for residential and commercial electrical protection. Built for multi-phase systems, with a C curve trip characteristic for moderate inrush currents and a 10kA short circuit breaking capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB 2A 4P C Curve 10kA
Brand: Eltech
SKU: DN4C02H
Alternatively Known As: Miniature Circuit Breaker 2A 4 Pole C Curve 10kA, 4P MCB 2A C Curve
Technical Specifications
- Rated Current: 2A
- Number of Poles: 4
- Trip Curve: C Curve
- Breaking Capacity: 10kA
- Type: Miniature Circuit Breaker (MCB)
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 0.2 kg
Key Features
- 2 Ampere rated current
- 4 Pole configuration for multi-phase protection
- C Curve trip characteristic for moderate inrush currents
- 10kA short circuit breaking capacity
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Power distribution panels
- Residential electrical protection
- Commercial electrical systems
- Industrial circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical circuits to prevent damage and reduce fire risk
- Enhances energy efficiency by preventing electrical faults
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eltech MCB 2A 4P C Curve 10kA is available for immediate purchase, ideal for residential, commercial, and industrial power distribution protection.
