Trade Discount 33%

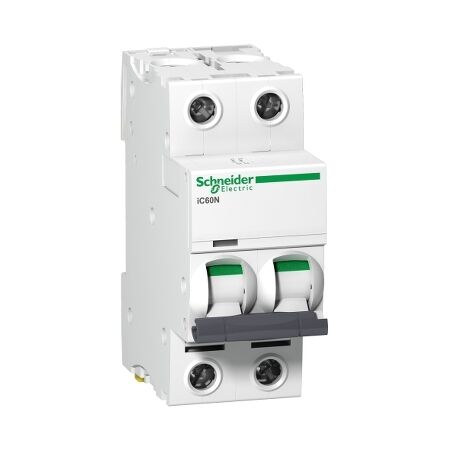

Miniature Circuit Breaker 2P 1A | C Curve | 6000A Breaking Capacity | IP20 by Clipsal
Miniature circuit breaker with 2P 1A rating and C curve—ideal for residential and commercial circuit protection. Built for safety with 6000A breaking capacity and IP20 rating, compatible with Acti9 range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Miniature circuit breaker (MCB), iC60N Disbo, 2P, 1A, C curve, 6000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9F44201
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated current: 1A
- Rated operational voltage: 12...133 V AC, 220...240 V AC, 380...415 V AC
- Control type: toggle
- Mounting mode: clip-on
- Mechanical durability: 20000 cycles
- Electrical durability: 10000 cycles
- Connection terminals: single terminal (1-25 mm² rigid, 1-16 mm² flexible)
- Wire stripping length: 14 mm
- Pollution degree: 3
- Overvoltage category: IV
- Tropicalisation: 2
- Dimensions (H x L x W): 85mm x 78.5mm x 36mm
- Weight: 0.25 kg
Key Features
- Thermal-magnetic trip unit technology
- Breaking capacity of 6000A at 415V AC
- IP20 rated for protection against solid objects
- Compatible with Acti9 range
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any indoor location requiring circuit protection
Standards & Compliance
- Complies with EN/IEC 60947-2 and EN/IEC 60898-1 for safety and performance standards.
Environmental Benefits
- Packaging made with recycled cardboard
- No single-use plastic in packaging
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Miniature Circuit Breaker (MCB) iC60N 2P 1A C Curve is available now for immediate purchase. Ideal for residential and commercial spaces, ensuring reliable circuit protection.
