Miniature Circuit Breaker 2P 2A | 70kA Breaking Capacity | B Curve | IP20 by Clipsal
Miniature circuit breaker with 2 poles and 2A rated current—ideal for residential and commercial circuit protection. Built for safety with 70kA breaking capacity and IP20 protection rating.
Sign in
Please login to continue to your account.

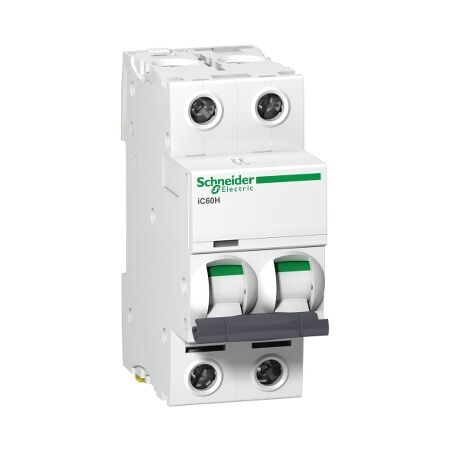

Product Name/Title: Acti9, Miniature circuit breaker (MCB), iC60H Disbo, 2P, 2A, B curve, 10000A (IEC/EN 60898-1), 70kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9F53202
Alternatively Known As: Miniature Circuit Breaker, MCB, Acti9 Circuit Breaker
- Rated operational voltage: 12...133 V AC, 220...240 V AC, 380...415 V AC, 440 V AC, 100...133 V DC
- Control type: toggle
- Local signalling: trip indicator
- Mounting mode: clip-on
- Connections: single terminal (top or bottom) 1-25 mm² rigid, 1-16 mm² flexible
- Wire stripping length: 14 mm
- Network type: AC/DC
- Network frequency: 50/60 Hz
- Overvoltage category: IV
- Pollution degree: 3
- Dimensions (H x L x W): 85mm x 78.5mm x 36mm
- Weight: 0.25 kg
- Thermal-magnetic trip unit technology
- Breaking capacity of 70 kA
- Rated current of 2 A
- IP20 protection rating
- Mechanical durability of 20,000 cycles
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring circuit protection
- Complies with EN/IEC 60947-2 and EN/IEC 60898-1 for safety and performance standards.
- Compliant with RoHS directive, ensuring reduced environmental impact.
2 years warranty against manufacturing defects.
The Clipsal Acti9 Miniature Circuit Breaker (MCB) iC60H 2P 2A B Curve is available now for immediate purchase. Ideal for residential and commercial spaces requiring circuit protection.
