Miniature Circuit Breaker 3 Pole 16A | C Tripping Characteristic | 10 kA Switching Capacity | IP20 by Eaton
Miniature circuit breaker with 3 poles and a C tripping characteristic—ideal for residential and commercial switchgear applications. Built for safety and reliability, it features a 10 kA rated switching capacity and operates at up to 400 V AC.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

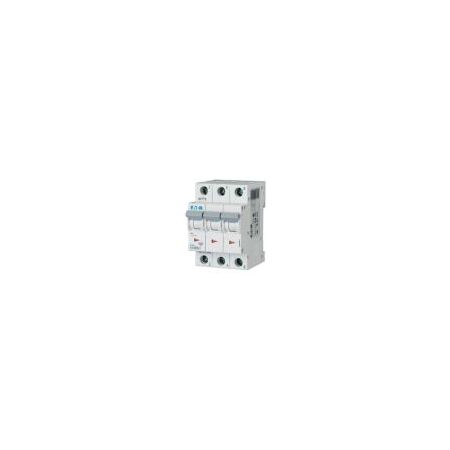

Product Name/Title: Miniature Circuit Breaker 3 Pole 16A | C Tripping Characteristic | 10 kA Switching Capacity | IP20 by Eaton
Brand: Eaton
SKU: Y7-242474
Alternatively Known As: Miniature Circuit Breaker 3 Pole 16A, MCB 3P 16A C Curve, Eaton PLSM 16A MCB, xPole PLS6/M MCB
Technical Specifications
- Number of poles: 3
- Tripping characteristic: C
- Rated current (In): 16 A
- Rated switching capacity (IEC/EN 60898-1): 10 kA
- Rated operational voltage (Ue): 400 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Degree of protection: IP20
- Connectable conductor cross section (solid and multi-wired): 1 mm² to 25 mm²
- Ambient operating temperature: -25 °C to 75 °C
- Heat dissipation: 6.9 W (current-dependent)
- Current limiting class: 3
- Dimensions (H x L x W): 75mm x 80mm x 52.5mm
- Weight: 0.314 kg
Key Features
- 3-pole miniature circuit breaker with tripping characteristic C
- Rated current: 16 A
- Rated switching capacity IEC/EN 60898-1: 10 kA
- Rated operational voltage up to 400 V AC
- Rated insulation voltage: 440 V
- Rated impulse withstand voltage: 4 kV
- Frequency rating: 50-60 Hz
- Degree of protection: IP20
- Connectable conductor cross section: 1 mm² to 25 mm²
- Ambient operating temperature range: -25 °C to 75 °C
- Current limiting class 3
- Additional equipment possible
- Ambient temperature affects current carrying capacity (1 °C increase results in 0.5% reduction)
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchgear systems.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Enhances electrical safety, reducing risk of electrical fires and energy waste
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller series xPole PLSM-C16/3-MW miniature circuit breaker is available for immediate purchase, ideal for residential and commercial electrical protection applications.
