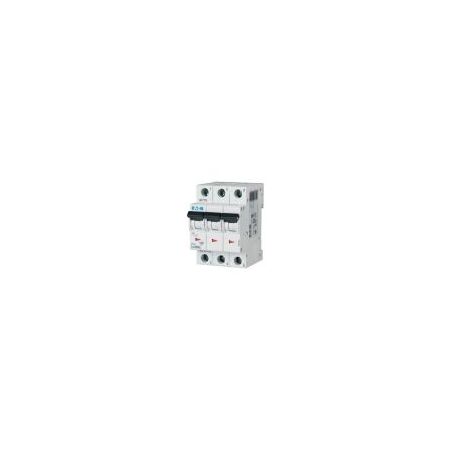

Miniature Circuit Breaker 3-Pole 40A | 10 kA Switching Capacity | IP20 Protection by Eaton
This 3-pole miniature circuit breaker features a rated current of 40A and a 10 kA switching capacity—ideal for residential and commercial switchgear applications. Built for safety and reliability, it offers IP20 protection and is RoHS compliant for reduced hazardous substances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 3-Pole 40A | 10 kA Switching Capacity | IP20 Protection by Eaton
Brand: Eaton
SKU: Y7-242501
Alternatively Known As: Eaton PLSM 3-pole MCB 40A, xPole PLS6/M Miniature Circuit Breaker, PLSM-D40/3-MW Circuit Breaker
Technical Specifications
- Product Name: Eaton Moeller series xPole - PLS6/M MCB
- Number of poles: 3
- Tripping characteristic: D
- Rated current (In): 40 A
- Rated switching capacity (IEC/EN 60898-1): 10 kA
- Rated operational voltage (Ue): 400 V AC max
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Overvoltage category: III
- Pollution degree: 2
- Degree of protection: IP20
- Connectable conductor cross section (solid and multi-wired): 1 mm² to 25 mm²
- Heat dissipation (current-dependent): 10.4 W total
- Ambient operating temperature range: -25 °C to 75 °C
- Current limiting class: 3
- Dimensions (H x L x W): 75mm x 80mm x 52.5mm
- Weight: 0.36 kg
Key Features
- 3-pole miniature circuit breaker with tripping characteristic D
- Rated current: 40 A
- Rated switching capacity IEC/EN 60898-1: 10 kA
- Rated operational voltage up to 400 V AC
- Overvoltage category III and pollution degree 2
- Connectable conductor cross section from 1 mm² to 25 mm²
- Degree of protection: IP20
- Additional equipment possible
- Ambient temperature affects current carrying capacity (1 °C increase results in 0.5% reduction)
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchgear systems.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Designed for energy-efficient electrical protection to prevent electrical faults and reduce energy waste
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller series xPole PLSM-D40/3-MW miniature circuit breaker is available for immediate purchase, ideal for residential and commercial electrical protection applications.
