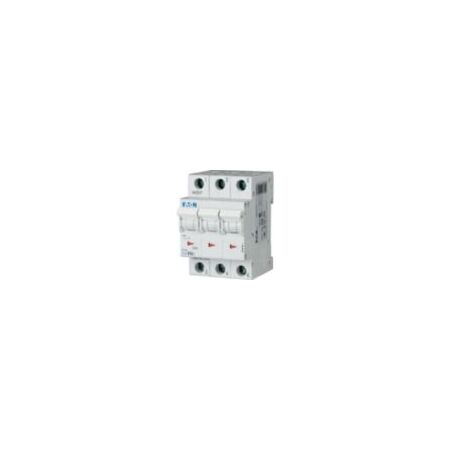

Miniature Circuit Breaker 3 Pole 50A | Tripping Characteristic C | IP20 Rated | Eaton
Miniature circuit breaker with 3 poles and a rated current of 50A—ideal for residential and commercial switchgear applications. Built for safety and reliability, featuring a tripping characteristic of C and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 3 Pole 50A | Tripping Characteristic C | IP20 Rated | Eaton
Brand: Eaton
SKU: Y7-242954
Alternatively Known As: Miniature Circuit Breaker 3 Pole 50A, MCB PLS6-C50/3, Eaton xPole PLS6 MCB
Technical Specifications
- Product Name: Eaton Moeller series xPole - PLS6/M MCB
- Number of poles: 3
- Tripping characteristic: C
- Rated current (In): 50 A
- Rated operational voltage (Ue) max: 400 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Rated switching capacity (IEC/EN 60898-1): 6 kA
- Degree of protection: IP20
- Connectable conductor cross section (solid and multi-wired): 1 mm² to 25 mm²
- Ambient operating temperature: -25 °C to 75 °C
- Current limiting class: 3
- Heat dissipation (current-dependent): 0 W
- Equipment heat dissipation: 14.9 W
- Dimensions (H x L x W): 73mm x 85mm x 52.5mm
- Weight: 0.36 kg
Key Features
- 3-pole miniature circuit breaker
- Tripping characteristic: C
- Rated current: 50 A
- Rated switching capacity IEC/EN 60898-1: 6 kA
- Connectable conductor cross section: 1 mm² to 25 mm²
- Ambient operating temperature range: -25 °C to 75 °C
- Degree of protection: IP20
- Additional equipment possible
- Current limiting class: 3
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchgear systems.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Helps protect electrical circuits, reducing risk of fire and electrical damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xPole PLS6/M 3-pole miniature circuit breaker 50A is available for immediate purchase, ideal for residential and commercial electrical switchgear applications.
