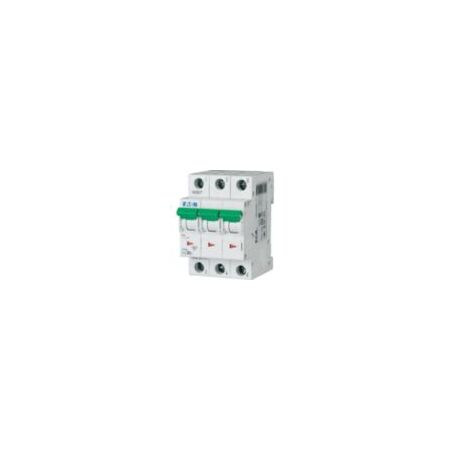

Miniature Circuit Breaker 3 Pole 6A C Curve | 6 kA Switching Capacity | IP20 Protection by Eaton
Miniature circuit breaker with 3 poles and a 6A C curve—ideal for residential and commercial switchgear applications. Built for safety and reliability, it features a 6 kA rated switching capacity and IP20 protection, ensuring effective overload and short circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 3 Pole 6A C Curve | 6 kA Switching Capacity | IP20 Protection by Eaton
Brand: Eaton
SKU: Y7-242943
Alternatively Known As: Miniature Circuit Breaker 3 Pole 6A C Curve MCB PLS6-C6/3 Eaton xPole
Technical Specifications
- Number of poles: 3
- Tripping characteristic: C
- Rated current (In): 6 A
- Rated switching capacity (IEC/EN 60898-1): 6 kA
- Rated operational voltage (Ue): 400 V AC max
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Overvoltage category: III
- Pollution degree: 2
- Degree of protection: IP20
- Connectable conductor cross section (solid and multi-wired): 1 mm² to 25 mm²
- Ambient operating temperature: -25 °C to 75 °C
- Current limiting class: 3
- Heat dissipation (current-dependent): 4.4 W total
- Dimensions (H x L x W): 73mm x 85mm x 52.5mm
- Weight: 0.36 kg
Key Features
- 3-pole miniature circuit breaker
- Tripping characteristic: C
- Rated current: 6 A
- Rated switching capacity IEC/EN 60898-1: 6 kA
- Rated operational voltage (Ue) max: 400 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Overvoltage category: III
- Pollution degree: 2
- Degree of protection: IP20
- Connectable conductor cross section: 1 mm² to 25 mm²
- Ambient operating temperature range: -25 °C to 75 °C
- Current limiting class: 3
- Additional equipment possible
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into switchgear systems.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps protect electrical circuits from overload and short circuits, reducing risk of fire and electrical hazards.
- Supports energy-efficient and safe electrical installations.
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller series xPole PLS6/M 3-pole miniature circuit breaker is available for immediate purchase, ideal for residential and commercial electrical switchgear applications.
