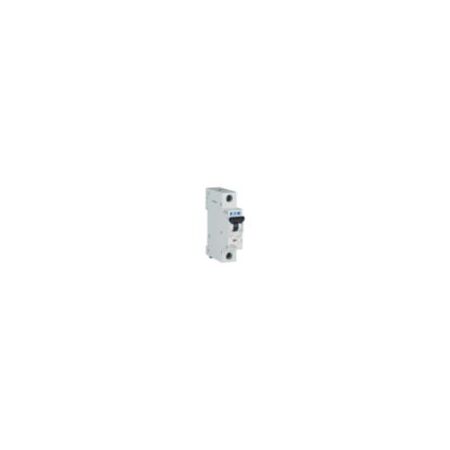

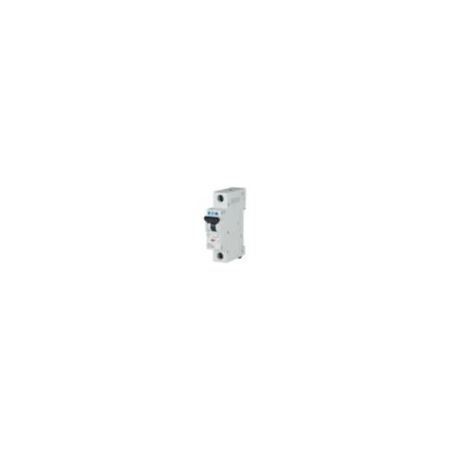

Miniature Circuit Breaker 32A | Single-Pole | C Tripping Characteristic | High Breaking Capacity by Eaton
Miniature circuit breaker rated at 32A with a C tripping characteristic—ideal for branch circuit protection in industrial and commercial settings. Built for reliable electrical distribution, it features a high breaking capacity of up to 15 kA and is designed for easy top-hat rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 32A | Single-Pole | C Tripping Characteristic | High Breaking Capacity by Eaton
Brand: Eaton
SKU: Y7-278564
Alternatively Known As: FAZ MCB 32A, Eaton FAZ Circuit Breaker, xEffect FAZ Miniature Circuit Breaker, FAZ-C32/1 MCB
Technical Specifications
- Product Type: Miniature Circuit Breaker (MCB)
- Poles: Single-pole
- Tripping Characteristic: C
- Rated Current (In): 32 A
- Voltage Rating: 240 V AC / 415 V AC, 60 V DC
- Breaking Capacity: Up to 15 kA (IEC/EN 60947-2)
- Frequency Rating: 50-60 Hz
- Rated Insulation Voltage (Ui): 440 V
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Mounting Method: Top-hat rail IEC/EN 60715
- Degree of Protection: IP20
- Connectable Conductor Cross Section: 1 mm² to 25 mm²
- Terminal Protection: Finger and hand touch safe
- Operational Temperature Range: -25 °C to 75 °C
- Electrical Lifespan: 10,000 operations
- Dimensions (H x L x W): 75.5mm x 80mm x 17.7mm
- Weight: 0.118 kg
Key Features
- Single-pole miniature circuit breaker with C tripping characteristic
- Rated current of 32 A suitable for branch circuit protection
- Rated operational voltage up to 240 V AC / 415 V AC and 60 V DC
- High breaking capacity up to 15 kA (IEC/EN 60947-2)
- Twin-purpose terminals for solid and multi-wired conductors up to 25 mm²
- Mounting on top-hat rail IEC/EN 60715 with IP20 degree of protection
- Complies with multiple international standards including IEC/EN 60947-2 and UL
- Ambient operating temperature range from -25 °C to 75 °C
- Additional equipment possible for enhanced functionality
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchgear.
Applications
- Branch circuits protection in industrial and advanced commercial switchgear
- Overcurrent protection for single-pole AC circuits up to 32A
- Use in electrical distribution panels requiring reliable circuit interruption
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires and equipment damage by reliable overcurrent protection
- Supports energy efficiency by ensuring safe electrical distribution and minimizing downtime
Warranty Information
Warranty terms as provided by Eaton, typically covering manufacturing defects. Please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller series xEffect FAZ-C32/1 Miniature Circuit Breaker is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
