Miniature Circuit Breaker 35A | 1 Pole D Curve | 15kA Breaking Capacity | IP40 by NHP
Miniature circuit breaker with 35A rated current and D curve trip—ideal for residential, commercial, and industrial applications. Built for safety and reliability, with 15kA short circuit capacity and IP40 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

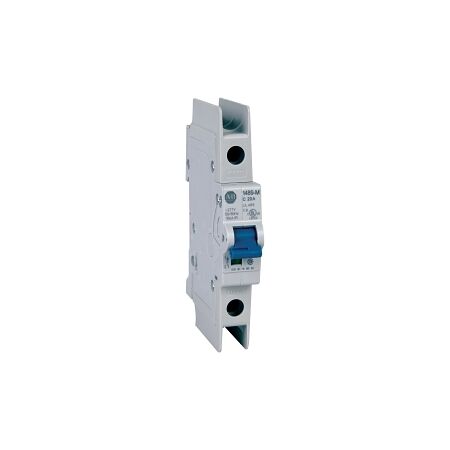

Product Name/Title: Allen-Bradley Miniature Circuit Breaker UL489 10kA 1Pole 35A D Curve
Brand: NHP
SKU: 1489M1D350
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 35 A
- Number of Poles: 1
- Trip Curve: D
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Service Voltage: 12 V
- Rated Short Circuit Breaking Capacity: 15 kA
- Max Rated Operation Voltage: 253 V
- Rated Impulse Withstand Voltage: 4 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature: -25 to 55 °C
- Dimensions (H x L x W): 111mm x 74mm x 17.5mm
- Weight: 0.13 kg
Key Features
- Rated current of 35 A with a D curve trip characteristic.
- Short circuit breaking capacity of 15 kA.
- IP40 protection degree for dust and moisture resistance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to enhance safety and reliability in electrical systems, reducing the risk of fire hazards.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The Allen-Bradley Miniature Circuit Breaker UL489 10kA 1Pole 35A D Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
