Trade Discount 20%

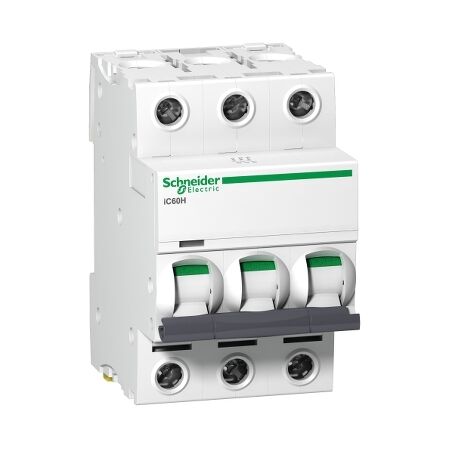

Miniature Circuit Breaker 3P 4A 70kA Breaking Capacity IP20 Rated Clipsal
Miniature circuit breaker with 3P 4A capacity and 70kA breaking strength—ideal for residential, commercial, and industrial protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 4 A
- Rated operational voltage: 12...133 V AC, 220...240 V AC, 380...415 V AC, 440 V AC, 100...133 V DC
- Control type: toggle
- Local signalling: trip indicator
- Mounting mode: clip-on
- Connections: single terminal (top or bottom) 1-25 mm² rigid, 1-16 mm² flexible
- Rated insulation voltage: 500 V AC
- Rated impulse withstand voltage: 6 kV
- Pollution degree: 3
- Overvoltage category: IV
- Tropicalisation: 2
- Dimensions (H x L x W): 85mm x 78.5mm x 54mm
- Weight: 0.375 kg
Key Features
- Thermal-magnetic trip unit technology.
- Breaking capacity of 70 kA at 220...240 V AC.
- IP20 rated for protection against solid objects.
- Mechanical durability of 20,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with EN/IEC 60898-1 and EN/IEC 60947-2 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directive, ensuring no toxic heavy metals.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Miniature Circuit Breaker (MCB) iC60H 3P 4A D Curve is available now for immediate purchase. Ideal for circuit protection in residential, commercial, and industrial applications.
