Miniature Circuit Breaker 3P 63A | 10kA Breaking Capacity | Clip-On Mounting by Clipsal
Miniature circuit breaker with 63A rated current and 10kA breaking capacity—ideal for small commercial and residential distribution systems. Built for safety and reliability, with clip-on mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

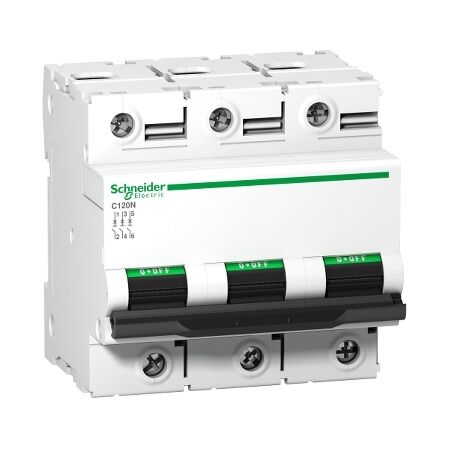

Product Name/Title: Acti9, Miniature circuit breaker (MCB), C120N, 3P, 63A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9N18364
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated current: 63A at 30°C
- Rated operational voltage: <= 375V DC, 380...415V AC 50/60Hz
- Mechanical durability: 20,000 cycles
- Electrical durability: 10,000 cycles conforming to IEC 60947-2
- IP degree of protection: IP20 conforming to IEC 60529
- Ambient air temperature for operation: -25...70°C
- Rated insulation voltage: 500V AC 50/60Hz conforming to IEC 60947-2
- Rated impulse withstand voltage: 6kV conforming to IEC 60947-2
- Dimensions (H x L x W): 81mm x 73mm x 81mm
- Weight: 0.615 kg
Key Features
- Thermal-magnetic trip unit technology.
- Breaking capacity of 10kA.
- Suitable for isolation.
- Clip-on mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential distribution systems.
Standards & Compliance
- Complies with EN/IEC 60947-2 and EN/IEC 60898-1 for safety and performance standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Miniature Circuit Breaker (MCB) C120N 3P 63A is available now for immediate purchase. Ideal for small commercial and residential electrical distribution systems.
