Trade Discount 33%
Miniature Circuit Breaker 3P 80A | 15kA Breaking Capacity | C Curve by Clipsal
Miniature circuit breaker with 80A rated current and 15kA breaking capacity—ideal for residential and small commercial applications. Built for safety and reliability, with thermal-magnetic trip technology and clip-on DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

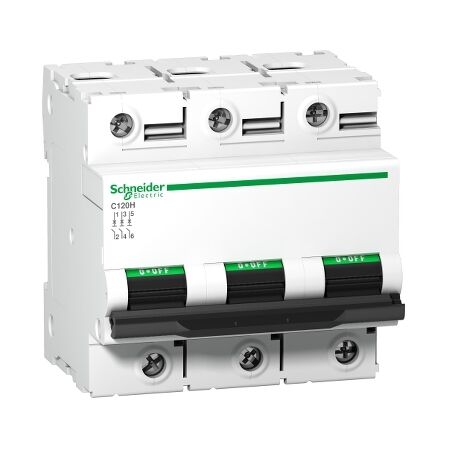

Product Name/Title: Acti9, Miniature circuit breaker (MCB), C120H, 3P, 80A, C curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9N18468
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated operational voltage: <= 375 V DC, 380...415 V AC, 220...240 V AC, 440 V AC
- Mechanical durability: 20000 cycles
- Electrical durability: 5000 cycles
- Wire stripping length: 15 mm
- Pollution degree: 3
- Overvoltage category: IV
- Operating altitude: 2000 m
- Dimensions (H x L x W): 81mm x 73mm x 81mm
- Weight: 0.615 kg
Key Features
- 80A rated current at 30 °C
- Thermal-magnetic trip unit technology
- Breaking capacity of 15000A
- Toggle control type with ON/OFF indication
- Clip-on mounting mode for 35 mm symmetrical DIN rail
- IP20 protection rating
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments
- Commercial: Small commercial applications
Standards & Compliance
- Complies with EN/IEC 60898-1 and EN/IEC 60947-2 for safety and performance standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Miniature Circuit Breaker (MCB) C120H 3P 80A is available now for immediate purchase. Ideal for residential and small commercial applications.
