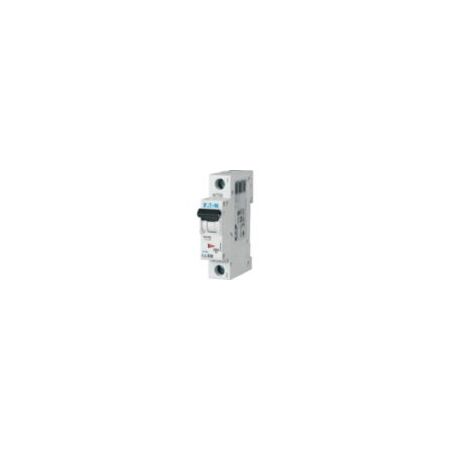

Miniature Circuit Breaker 40A C Curve | Single Pole | IP20 Protection | 6kA Switching Capacity by Eaton
Miniature circuit breaker with a 40A rated current and C tripping characteristic—ideal for residential and commercial switchgear applications. Built for safety and reliability, featuring IP20 protection and a 6kA rated switching capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 40A C Curve | Single Pole | IP20 Protection | 6kA Switching Capacity by Eaton
Brand: Eaton
SKU: Y7-242685
Alternatively Known As: Miniature Circuit Breaker 40A C Curve, Eaton PLS6 MCB, xPole PLS6-C40, Single Pole Circuit Breaker 40 Amp
Technical Specifications
- Product Type: Miniature circuit breaker PLS6
- Number of poles: 1 (single-pole)
- Tripping characteristic: C
- Rated current (In): 40 A
- Rated operational voltage (Ue): 230 V AC max
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Rated switching capacity IEC/EN 60898-1: 6 kA
- Degree of protection: IP20
- Connectable conductor cross section (solid and multi-wired): 1 mm² to 25 mm²
- Ambient operating temperature: -25 °C to 75 °C
- Current limiting class: 3
- Heat dissipation (current-dependent): 0 W
- Equipment heat dissipation (current-dependent): 3.4 W
- Pollution degree: 2
- Overvoltage category: III
- Dimensions (H x L x W): 73mm x 85mm x 17.5mm
- Weight: 0.12 kg
Key Features
- Single-pole miniature circuit breaker
- Tripping characteristic: C
- Rated current: 40 A
- Rated switching capacity IEC/EN 60898-1: 6 kA
- Rated operational voltage (Ue) max: 230 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Overvoltage category: III
- Pollution degree: 2
- Degree of protection: IP20
- Connectable conductor cross section: 1 mm² to 25 mm²
- Ambient operating temperature range: -25 °C to 75 °C
- Current limiting class: 3
- Additional equipment possible
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into switchgear systems.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps protect electrical circuits from overload and short circuits, preventing electrical fires and damage.
- Supports energy efficiency by ensuring safe operation of electrical systems.
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller series xPole PLS6-C40-MW Miniature Circuit Breaker is available for immediate purchase, ideal for residential and commercial electrical switchgear applications.
