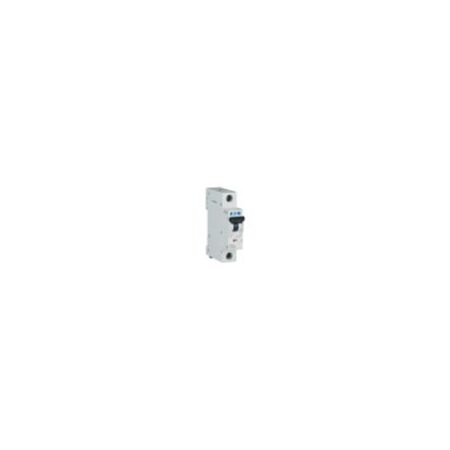

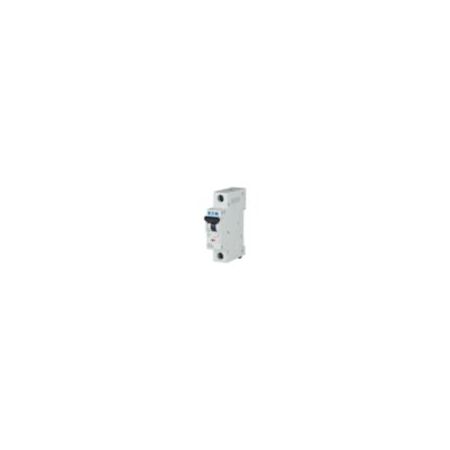

Miniature Circuit Breaker 4A C-Characteristic | Single-Pole | High Breaking Capacity | IP40 Protection by Eaton
Miniature circuit breaker with a 4A rated current and C tripping characteristic—ideal for branch circuit protection in industrial and commercial settings. Built for safety and reliability, featuring high breaking capacity up to 15 kA and IP40 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 4A C-Characteristic | Single-Pole | High Breaking Capacity | IP40 Protection by Eaton
Brand: Eaton
SKU: Y7-278553
Alternatively Known As: Miniature Circuit Breaker 4A C-Characteristic, FAZ MCB 4A, Eaton FAZ-C4/1, xEffect FAZ MCB
Technical Specifications
- Type: FAZ Miniature circuit breaker
- Number of poles: 1 (single-pole)
- Tripping characteristic: C
- Rated current (In): 4 A
- Voltage rating: 240 V AC / 415 V AC, 60 V DC
- Rated operational voltage (Ue) max: 230 V
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Rated switching capacity: 10 kA (IEC/EN 60898-1), 15 kA (IEC/EN 60947-2)
- Breaking capacity: 10 kA (UL1077)
- Selectivity class: 3
- Overvoltage category: III
- Pollution degree: 2
- Electrical lifespan: 10,000 operations
- Mounting method: Top-hat rail IEC/EN 60715
- Degree of protection: IP40 (when fitted)
- Terminal type: Twin-purpose terminals
- Connectable conductor cross section: 1 mm² to 25 mm²
- Ambient operating temperature: -25 °C to 75 °C
- Dimensions (H x L x W): 75.5mm x 80mm x 17.7mm
- Weight: 0.112 kg
Key Features
- Single-pole miniature circuit breaker with C tripping characteristic
- Rated current of 4 A
- Rated operational voltage up to 240 V AC / 415 V AC and 60 V DC
- High breaking capacity up to 15 kA (IEC/EN 60947-2)
- Twin-purpose terminals for flexible wiring
- Mounting on top-hat rail IEC/EN 60715
- IP40 degree of protection when fitted
- Complies with multiple international standards including IEC/EN 60947-2, UL 1077, CSA
- Electrical lifespan of 10,000 operations
- Ambient operating temperature range from -25 °C to 75 °C
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchgear.
Applications
- Branch circuits protection in industrial and advanced commercial switchgear
- Use in industrial and advanced commercial electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of fire and electrical faults
- Supports energy-efficient electrical system protection
- Durable design reduces need for frequent replacements
Warranty Information
Warranty details are subject to Eaton's standard terms and conditions; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller series xEffect FAZ-C4/1 Miniature Circuit Breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
