Miniature Circuit Breaker 4P 80A | 10kA Breaking Capacity | IP20 Rated by Clipsal
Miniature circuit breaker with 80A rated current and 10kA breaking capacity—ideal for small commercial and residential distribution systems. Built for safety with thermal-magnetic trip unit and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

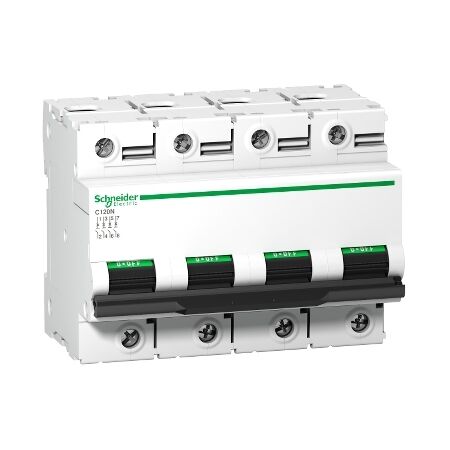

Product Name/Title: Acti9, Miniature circuit breaker (MCB), C120N, 4P, 80A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9N18372
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated current: 80A at 30°C
- Rated operational voltage: 380...415V AC 50/60Hz
- Control type: toggle
- Mounting mode: clip-on
- Mechanical durability: 20,000 cycles
- Electrical durability: 5,000 cycles
- Wire stripping length: 15mm
- Pollution degree: 3
- Overvoltage category: IV
- Operating altitude: 2000m
- Dimensions (H x L x W): 81mm x 73mm x 108mm
- Weight: 0.82 kg
Key Features
- Thermal-magnetic trip unit technology.
- Breaking capacity of 10kA.
- Suitable for isolation.
- IP20 rated for protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential distribution systems.
Standards & Compliance
- Complies with EN/IEC 60898-1 and EN/IEC 60947-2.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Miniature Circuit Breaker (MCB) C120N 4P 80A is available now for immediate purchase. Ideal for small commercial and residential applications.
