Miniature Circuit Breaker 50A D Curve | 15kA | IP40 Protection by NHP
Miniature circuit breaker with 50A rated current and D curve trip—ideal for residential, commercial, and industrial applications. Built for enhanced safety, with 15kA short circuit capacity and IP40 dust protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

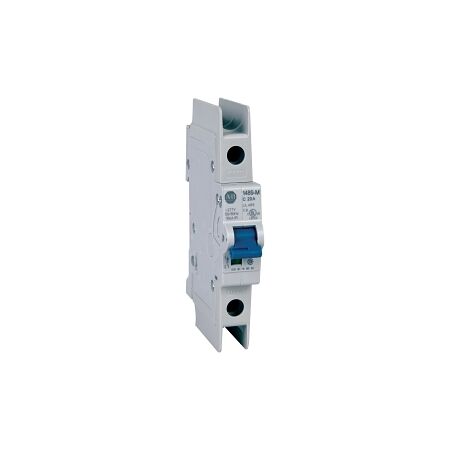

Product Name/Title: Allen-Bradley Miniature Circuit Breaker UL489 10kA 1Pole 50A D Curve
Brand: NHP
SKU: 1489M1D500
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 50 A
- Number of Poles: 1
- Trip Curve: D
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Service Voltage (Ub AC): 12 V
- Rated Short Circuit Breaking Capacity (Icn): 15 kA
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-35 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-25 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 111mm x 74mm x 17.5mm
- Weight: 0.13 kg
Key Features
- Rated current of 50 A with a D curve trip characteristic.
- Short circuit breaking capacity of 15 kA.
- IP40 protection degree for dust and moisture resistance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of fire hazards.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Allen-Bradley Miniature Circuit Breaker UL489 10kA 1Pole 50A D Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
Non-Returnable & Non-Cancellable
