Miniature Circuit Breaker 60A | 10kA C Curve | IP40 Rated by NHP
Miniature circuit breaker with 60A rated current and 10kA short circuit capacity—ideal for residential, commercial, and industrial applications. Built for enhanced electrical safety, with IP40 protection and C curve trip characteristic.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

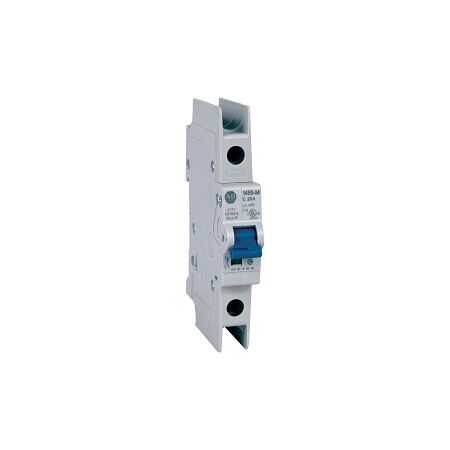

Product Name/Title: Allen-Bradley Miniature Circuit Breaker UL489 10kA 1Pole 60A C Curve
Brand: NHP
SKU: 1489M1C600
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 60 A
- Number of Poles: 1
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Service Voltage: 12 V
- Rated Short Circuit Breaking Capacity: 15 kA
- Max Rated Operation Voltage: 253 V
- Rated Impulse Withstand Voltage: 4 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-35 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-25 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 111mm x 74mm x 17.5mm
- Weight: 0.13 kg
Key Features
- Rated current of 60 A with a C curve trip characteristic.
- Short circuit breaking capacity of 10kA.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of fire hazards.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Allen-Bradley Miniature Circuit Breaker UL489 10kA 1Pole 60A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
Non-Returnable & Non-Cancellable
