Miniature Circuit Breaker 63A | 6kA 1Pole C Curve | IP40 Protection by NHP
Miniature circuit breaker with 63A rated current and C curve trip—ideal for residential, commercial, and industrial applications. Built for safety and reliability, featuring 6kA short circuit capacity and IP40 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

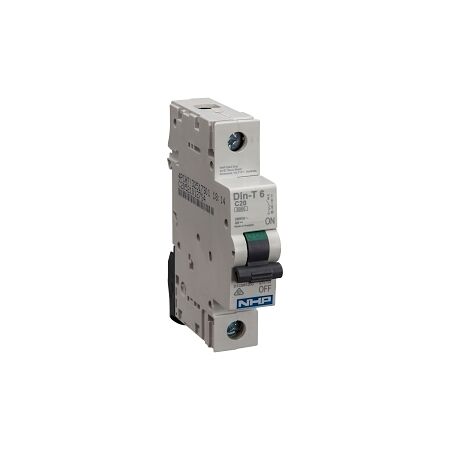

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 6kA 1Pole 63A C Curve
Brand: NHP
SKU: DTCB6163C
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Breaker 63A
Technical Specifications
- Rated Current: 63 A
- Number of Poles: 1
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 6 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Operating Temperature: -25 to 70 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.12 kg
Key Features
- Rated current of 63A with a C curve trip characteristic.
- 6kA short circuit breaking capacity.
- IP40 protection degree.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety and reliability.
Warranty Information
Standard warranty applies.
Available Now
The NHP DIN-T Miniature Circuit Breaker 6kA 1Pole 63A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
