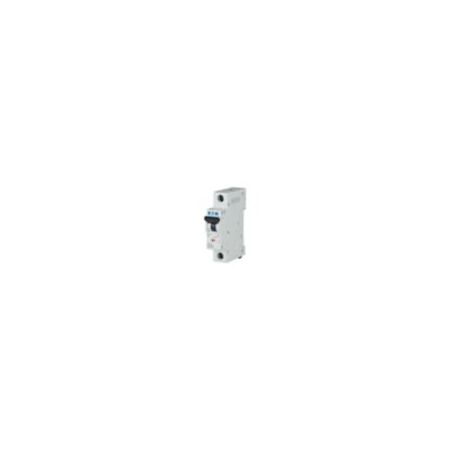

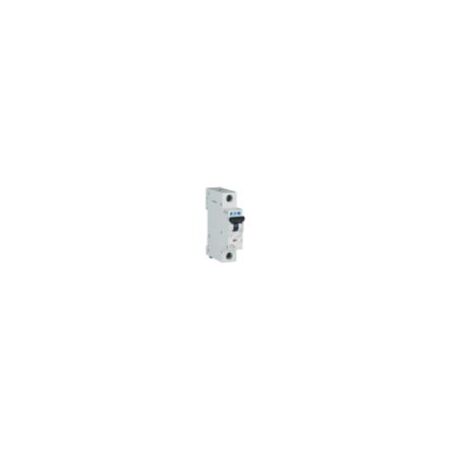

Miniature Circuit Breaker 6A C-Characteristic | 15 kA Rated Switching Capacity | IP20 Protection | Eaton
Miniature circuit breaker with a 6A rated current and C-characteristic tripping—ideal for branch circuit protection in industrial and commercial settings. Built for safety and reliability, featuring a rated switching capacity of 15 kA and IP20 protection for secure installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 6A C-Characteristic | 15 kA Rated Switching Capacity | IP20 Protection | Eaton
Brand: Eaton
SKU: Y7-278555
Alternatively Known As: Miniature Circuit Breaker 6A C-Characteristic, FAZ MCB 6 Amp, Eaton FAZ-C6/1 MCB
Technical Specifications
- Product Type: Miniature Circuit Breaker (MCB)
- Number of Poles: 1
- Tripping Characteristic: C
- Rated Current (In): 6 A
- Voltage Rating AC: 240 V AC / 415 V AC
- Voltage Rating DC: 60 V DC (per pole)
- Rated Switching Capacity: 15 kA (IEC/EN 60947-2), 10 kA (IEC/EN 60898-1)
- Breaking Capacity: 10 kA (UL1077)
- Frequency Rating: 50-60 Hz
- Rated Insulation Voltage (Ui): 440 V
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Mounting Method: Top-hat rail IEC/EN 60715
- Terminal Type: Twin-purpose terminals
- Connectable Conductor Cross Section: 1 mm² to 25 mm²
- Degree of Protection: IP20 (IEC), IP40 when fitted
- Electrical Lifespan: 10,000 operations
- Ambient Operating Temperature: -25 °C to 75 °C
- Selectivity Class: 3
- Overvoltage Category: III
- Pollution Degree: 2
- Dimensions (H x L x W): 75.5mm x 80mm x 17.7mm
- Weight: 0.109 kg
Key Features
- Single-pole miniature circuit breaker
- Tripping characteristic: C
- Rated current: 6 A
- Rated operational voltage: 240 V AC / 415 V AC
- Rated switching capacity up to 15 kA (IEC/EN 60947-2)
- Twin-purpose terminals for flexible wiring
- Mounting on Top-hat rail IEC/EN 60715
- Finger and hand touch safe terminals
- Ambient operating temperature range: -25 °C to 75 °C
- Additional equipment possible
- Ambient temperature affects current carrying capacity (1 °C increase reduces capacity by 0.5%)
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper operation.
Applications
- Branch circuits protection
- Industrial and advanced commercial switchgear applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps protect electrical circuits from overload and short circuits, preventing electrical fires and equipment damage
- Supports energy efficiency by ensuring safe and reliable electrical distribution
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xEffect FAZ-C6/1 Miniature Circuit Breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
