Miniature Circuit Breaker 6A | Single-Pole | Tripping Characteristic D | 10 kA Switching Capacity | IP20 by Eaton
This 6A miniature circuit breaker is designed for residential and commercial switchgear applications, featuring a single-pole design and tripping characteristic D. With a rated switching capacity of 10 kA and IP20 protection, it ensures reliable circuit protection and compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

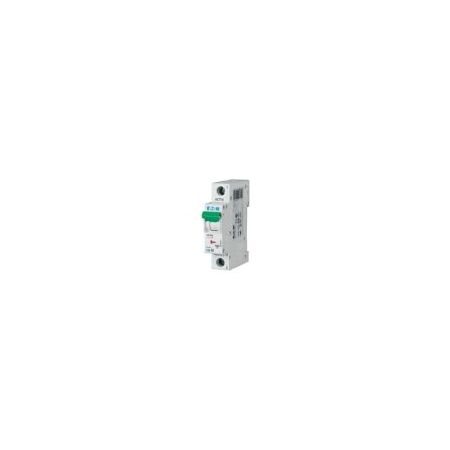

Product Name/Title: Miniature Circuit Breaker 6A | Single-Pole | Tripping Characteristic D | 10 kA Switching Capacity | IP20 by Eaton
Brand: Eaton
SKU: Y7-242223
Alternatively Known As: PLSM-D6-MW MCB, Eaton xPole PLS6/M circuit breaker, 6A miniature circuit breaker, single-pole MCB
Technical Specifications
- Product Name: Eaton Moeller series xPole - PLS6/M MCB
- Number of poles: Single-pole
- Tripping characteristic: D
- Rated current (In): 6 A
- Rated switching capacity (IEC/EN 60898-1): 10 kA
- Rated operational voltage (Ue): 230 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Overvoltage category: III
- Pollution degree: 2
- Degree of protection: IP20
- Connectable conductor cross section (solid-core and multi-wired): 1 mm² to 25 mm²
- Ambient operating temperature: -25 °C to 75 °C
- Heat dissipation current-dependent: 1.5 W
- Current limiting class: 3
- Dimensions (H x L x W): 75mm x 80mm x 17.5mm
- Weight: 0.111 kg
Key Features
- 1-pole miniature circuit breaker with tripping characteristic D
- Rated current: 6 A
- Rated switching capacity IEC/EN 60898-1: 10 kA
- Rated operational voltage (Ue) max: 230 V AC
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Frequency rating: 50-60 Hz
- Overvoltage category III and pollution degree 2
- Degree of protection: IP20
- Connectable conductor cross section solid-core and multi-wired: 1 mm² to 25 mm²
- Ambient operating temperature range: -25 °C to 75 °C
- Current limiting class 3
- Additional equipment possible
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchgear systems.
Applications
- Switchgear for residential applications
- Switchgear for commercial applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Designed for energy-efficient circuit protection to prevent electrical faults and reduce energy waste
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller series xPole PLS6/M Miniature Circuit Breaker 6A is available for immediate purchase, ideal for residential and commercial electrical switchgear applications.
