Miniature Circuit Breaker 6kA 1Pole 16A | C Curve | IP40 Rated by NHP
Miniature circuit breaker with 16A rated current and C curve—ideal for residential, commercial, and light industrial applications. Built for overload protection, with 6kA short circuit capacity and IP40 rating for solid object protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

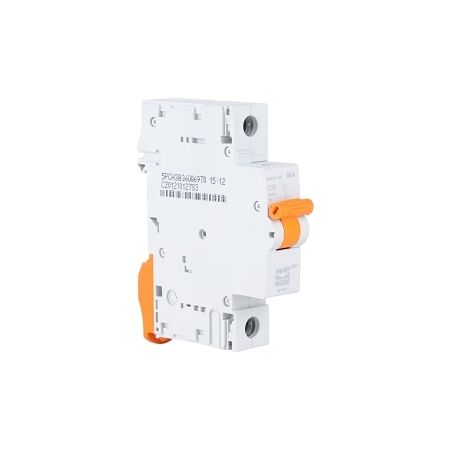

Product Name/Title: NHP MOD6 Miniature Circuit Breaker 6kA 1Pole 16A C Curve
Brand: NHP
SKU: MOD6116
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated Current: 16 A
- Number of Poles: 1
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 6 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-25 mm²
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.12 kg
Key Features
- Rated current of 16A with a C curve for overload protection.
- 6kA short circuit breaking capacity.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Efficient circuit protection reduces the risk of electrical fires and equipment damage.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP MOD6 Miniature Circuit Breaker 6kA 1Pole 16A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
Non-Returnable & Non-Cancellable
