Miniature Circuit Breaker 6kA 2 Pole 20A | D Curve | Compact Design by NHP
Miniature circuit breaker with 6kA breaking capacity and D curve—ideal for high inrush current applications. Built for residential and commercial use, with compact DIN rail mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

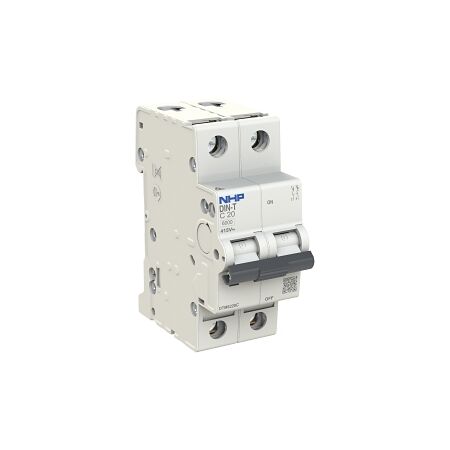

Product Name/Title: NHP DIN-T Miniature Circuit Breaker MCB 6kA 2 Pole 20A D Curve
Brand: NHP
SKU: DTM6220D
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 20 A
- Number of Poles: 2
- Trip Curve: D
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: DC
- Rated Short Circuit Breaking Capacity: 6 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 0.75-35 mm²
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Dimensions (H x L x W): 85mm x 75mm x 35mm
- Weight: 0.23 kg
Key Features
- 6kA short circuit breaking capacity
- D curve for high inrush current applications
- Compact design for DIN rail mounting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
- Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
- Enhances electrical safety, reducing the risk of fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker MCB 6kA 2 Pole 20A D Curve is available now for immediate purchase. Ideal for residential and commercial electrical systems.
