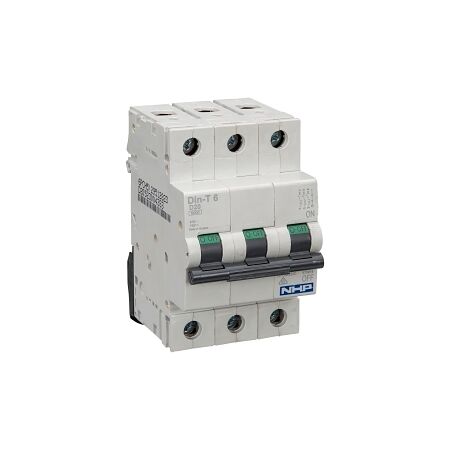

NHP DIN-T Miniature Circuit Breaker 6kA 3Pole 63A D Curve

Miniature Circuit Breaker 6kA 3 Pole | 63A D Curve | IP40 Rated by NHP

BRAND: NHP

SKU: DTCB6363D

$126.90 List price: $168.50

+ −

30 Days Return Delivery Options

Miniature circuit breaker with 6kA breaking capacity and 63A D curve—ideal for residential and commercial electrical protection. Built for high inrush current applications, with IP40 rating for solid object protection.

Description
Attachments

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 6kA 3Pole 63A D Curve

Brand: NHP

SKU: DTCB6363D

Alternatively Known As: Miniature Circuit Breaker, MCB, 3 Pole Circuit Breaker, D Curve MCB

Technical Specifications

Rated Current: 63 A
Number of Poles: 3
Trip Curve: D
Rated Voltage: 415 V
Frequency: 50-60 Hz
Voltage Type: AC/DC
Rated Short Circuit Breaking Capacity: 6 kA
Degree of Protection: IP40
Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
Rated Insulation Voltage: 440 V
Rated Impulse Withstand Voltage: 6 kV
Pollution Degree: 3
Rated Surrounding Temperature: 30 °C
Ambient Temperature During Operating: -25-70 °C
Dimensions (H x L x W): 86mm x 76mm x 54mm
Weight: 0.36 kg

Key Features

6kA short circuit breaking capacity
3 poles for three-phase applications
D curve for high inrush current protection
IP40 rated for protection against solid objects

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications
General: Electrical distribution and protection in various settings

Standards & Compliance

Complies with AS/NZS 60898 and AS/NZS 60947 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of fire hazards.
Contributes to energy efficiency by preventing overloads.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Miniature Circuit Breaker 6kA 3Pole 63A D Curve is available now for immediate purchase. Ideal for residential and commercial electrical protection.

DTCB6363D-AU-MCB-6kA-3P-D-Curve-Datasheet.pdf (DTCB6363D-AU-MCB-6kA-3P-D-Curve-Datasheet.pdf, 826 Kb) [Download]
