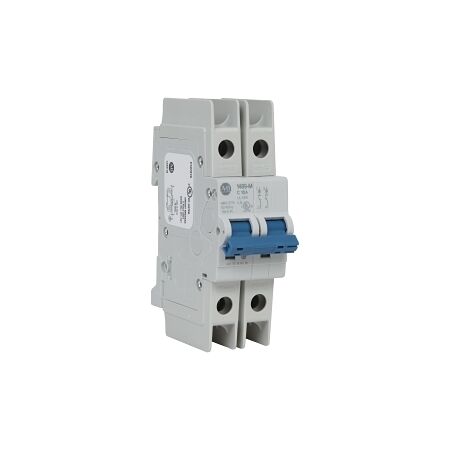

Miniature Circuit Breaker 7A D Curve | 2 Pole | IP40 Rated by NHP
Miniature circuit breaker with 7A rated current and D curve trip—ideal for industrial, commercial, and residential circuit protection. Built for safety, with dual pole design and IP40 rating for solid object protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley Miniature Circuit Breaker UL489 10kA 2Pole 7A D Curve
Brand: NHP
SKU: 1489M2D070
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 7 A
- Number of Poles: 2
- Trip Curve: D
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 15 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Rated Impulse Withstand Voltage: 4 kV
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature: -25 to 55 °C
- Dimensions (H x L x W): 111mm x 75mm x 35mm
- Weight: 0.25 kg
Key Features
- Rated current of 7A with a D curve trip characteristic.
- Two poles for dual circuit protection.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment protection
- Commercial: Electrical distribution systems
- Residential: Circuit protection in homes
Standards & Compliance
- Complies with AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Enhances safety by preventing electrical overloads and faults.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley Miniature Circuit Breaker UL489 10kA 2Pole 7A D Curve is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.
Non-Returnable & Non-Cancellable
