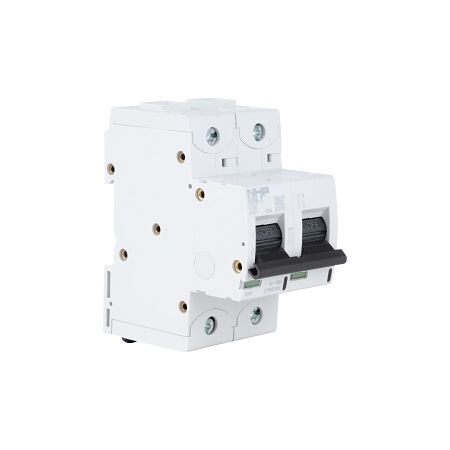

Miniature Circuit Breaker 80A | 2 Pole C Curve | IP40 Protection by NHP
Miniature circuit breaker with 80A rated current and C curve trip—ideal for industrial, commercial, and residential applications. Built for effective circuit protection, with IP40 degree of protection and dual pole design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10H 2Pole 80A C Curve
Brand: NHP
SKU: DTMH280C
Alternatively Known As: Miniature Circuit Breaker, MCB, 2 Pole Circuit Breaker
Technical Specifications
- Rated Current: 80 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity (ICU): 50 kA at 230 VAC, 50 kA at 400 VAC
- Max Rated Operation Voltage: 690 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Concurrently Switching Neutral Conductor: Yes
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-70 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25-60 °C
- Dimensions (H x L x W): 100mm x 90mm x 54mm
- Weight: 0.74 kg
Key Features
- 80A rated current with C curve trip characteristic.
- 2 poles for effective circuit protection.
- IP40 degree of protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment protection
- Commercial: Electrical distribution systems
- Residential: Circuit protection in homes
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed to minimize electrical hazards and enhance safety.
Warranty Information
Standard warranty applies.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10H 2Pole 80A C Curve is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.
