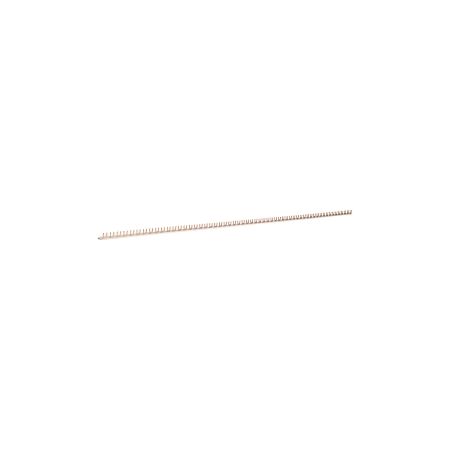

Miniature Circuit Breaker Bus Comb 57 Way | 110A End Feed | 130A Centre Feed | Fork Type by NHP
Miniature circuit breaker bus comb with 57 ways and fork type connection—ideal for industrial and residential power distribution. Built for enhanced safety with insulated design, supporting 110A end feed and 130A centre feed.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Miniature Circuit Breaker Bus Comb 57 Way 1Pole Fork Type 110A End Feed 130A Centre Feed
Brand: NHP
SKU: ICL561F
Alternatively Known As: Miniature Circuit Breaker Busbar, DIN Rail Bus Comb, Fork Type Busbar
Technical Specifications
- Rated current in busbar comb centre feed: 130 A
- Rated current in busbar comb end feed: 110 A
- Type of electric connection: Fork
- Number of phases: 1
- Number of poles: 57
- Rated permanent current (Iu): 85 A
- Conditioned rated short circuit current (Iq): 25 kA
- Suitable for number of devices: 57
- Insulated: Yes
- Suitable for devices with N conductor: No
- Suitable for devices with auxiliary switch: No
- Module width: 18 mm
- Cross section: 16 mm²
- Dimensions (H x L x W): 57mm x 130mm x 18mm
- Weight: 1.5 kg
Key Features
- Busbar Comb Fork Type 1 Pole with 57 ways.
- Rated current of 110A for end feed and 130A for centre feed.
- Insulated design for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Residential: Electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient design reduces energy loss and enhances system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker Bus Comb is available now for immediate purchase, ideal for electrical installations requiring reliable circuit protection.
