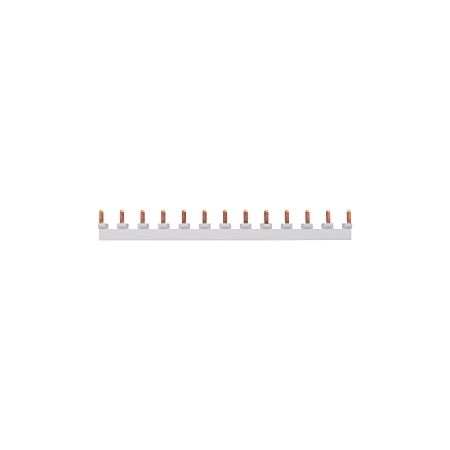

Miniature Circuit Breaker Busbar Comb 13 1PN | 80A End Feed | 100A Centre Feed | Grey by NHP
Miniature circuit breaker busbar comb with 13 1PN pin type, rated for 80A end feed and 100A centre feed—ideal for industrial and residential power distribution. Built for safety and reliability, with insulated design for efficient electrical connections.
Sign in
Please login to continue to your account.
Product Name/Title: NHP MOD6 Miniature Circuit Breaker Busbar Comb 13 1PN Pin Type 80A End Feed 100A Centre Feed Grey
Brand: NHP
SKU: IBD213PN
Alternatively Known As: NHP Busbar Comb, Miniature Circuit Breaker Busbar, MOD6 MCB
- Rated current in busbar comb centre feed: 100 A
- Rated current in busbar comb end feed: 80 A
- Type of electric connection: Pin
- Number of phases: 2
- Number of poles: 13
- Rated permanent current (Iu): 63 A
- Conditioned rated short circuit current (Iq): 25 kA
- Suitable for number of devices: 13
- Insulated: Yes
- Module width: 9 mm
- Cross section: 14 mm²
- Width in number of modular spacings: 12
- Dimensions (H x L x W): 26mm x 100mm x 9mm
- Weight: 1.0 kg
- Busbar Comb Pin Type design for efficient electrical connections.
- Rated for 100A in centre feed and 80A in end feed configurations.
- Insulated for safety and reliability.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Residential: Electrical installations requiring circuit protection
- Complies with AS/NZS 3000 for electrical installation safety.
- Efficient design reduces energy loss and enhances system reliability.
1 year warranty against manufacturing defects.
The NHP MOD6 Miniature Circuit Breaker Busbar Comb is available now for immediate purchase, ideal for electrical installations requiring reliable circuit protection.
