Miniature Circuit Breaker Busbar Comb 55 Way | 80A End Feed | 100A Centre Feed | Insulated by NHP
Miniature circuit breaker busbar comb with 55 ways, featuring 80A end feed and 100A centre feed—ideal for commercial and industrial electrical distribution. Built for safety and reliability, with insulated pin type design.
Sign in
Please login to continue to your account.

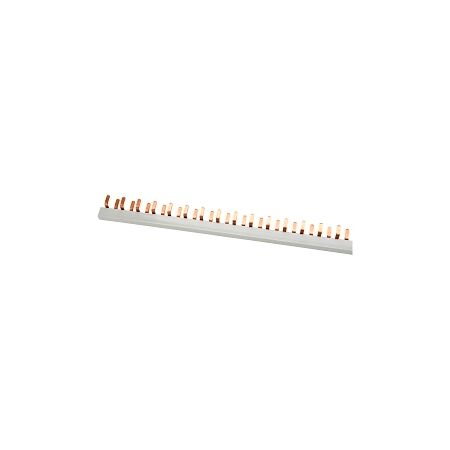

Product Name/Title: NHP MOD6 Miniature Circuit Breaker Busbar Comb 55 Way 1PN Pin 80A End Feed 100A Centre Feed
Brand: NHP
SKU: IBD255P
Alternatively Known As: NHP Busbar Comb, Miniature Circuit Breaker Busbar, MOD6 MCB Busbar
- Rated Current in Busbar Comb Centre Feed: 100 A
- Rated Current in Busbar Comb End Feed: 80 A
- Type of Electric Connection: Pin
- Number of Phases: 2
- Number of Poles: 55
- Rated Permanent Current (Iu): 63 A
- Conditioned Rated Short Circuit Current (Iq): 25 kA
- Suitable for Number of Devices: 56
- Insulated: Yes
- Module Width: 9 mm
- Cross Section: 10 mm²
- Dimensions (H x L x W): 26mm x 9mm x 56mm
- Weight: 1.5 kg
- Busbar Comb Pin Type design for efficient electrical connection.
- Rated for 100A in centre feed and 80A in end feed configurations.
- Insulated for safety and reliability.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Commercial: Electrical distribution in commercial buildings
- Industrial: Power distribution in manufacturing facilities
- General: Suitable for various electrical installations requiring circuit protection
- Complies with AS/NZS 3000 for electrical installation safety.
- Efficient design reduces energy loss and enhances system reliability.
1 year warranty against manufacturing defects.
The NHP MOD6 Miniature Circuit Breaker Busbar Comb is available now for immediate purchase. Ideal for electrical distribution in commercial and industrial applications.
