Miniature Circuit Breaker DC 6kA 2Pole 32A | C Curve | IP40 Rated by NHP
Miniature circuit breaker with 32A rated current and C curve trip—ideal for residential, commercial, and industrial applications. Built for enhanced circuit protection, with IP40 rating for solid object protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

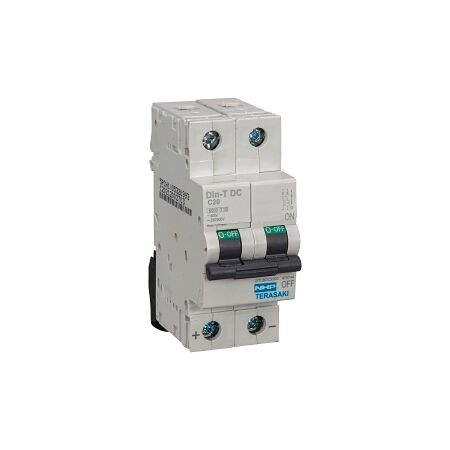

Product Name/Title: NHP DIN-T Miniature Circuit Breaker DC 6kA 2Pole 32A C Curve
Brand: NHP
SKU: DTCBDC232C
Alternatively Known As: Miniature Circuit Breaker, MCB, DC Circuit Breaker, 2 Pole Circuit Breaker
Technical Specifications
- Rated Current: 32 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity (ICU): 10 kA at 125 V DC
- Rated Short Circuit Breaking Capacity (ICN): 6 kA at 230 V AC
- Degree of Protection: IP40
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Concurrently Switching Neutral Conductor: Yes
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25 to 70 °C
- Dimensions (H x L x W): 86mm x 76mm x 36mm
- Weight: 0.13 kg
Key Features
- Rated current of 32A with a C curve trip characteristic.
- Two poles for enhanced circuit protection.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety, reducing the risk of fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker DC 6kA 2Pole 32A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
