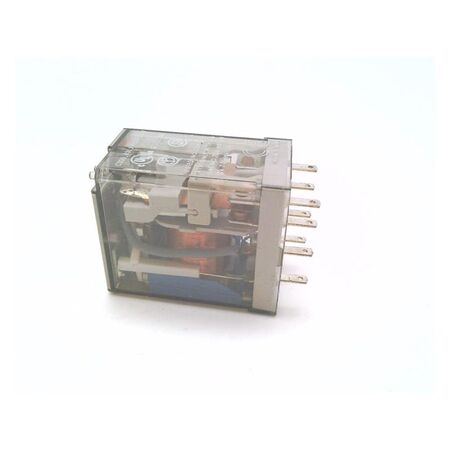

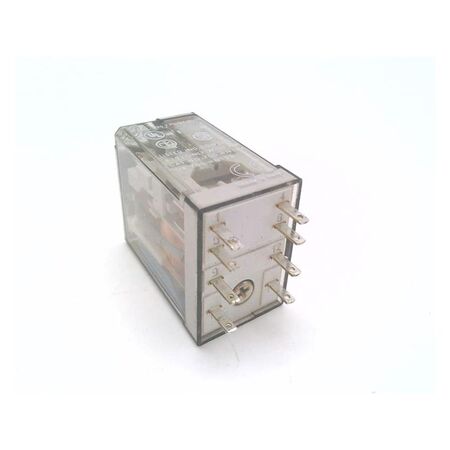

Miniature General Purpose Relay | 10 Amp Current Rating | 24 VDC Operation | LED Indicator Option | by Allen-Bradley
The Miniature General Purpose Relay is designed for reliable performance in industrial control systems and automation equipment. With a 10 Amp current rating and 24 VDC operation, this relay features a square base and blade-style terminals for easy installation. The on/off LED indicator option enhances visibility, making it ideal for general electrical switching applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Miniature ice cube relay
- Base: Square
- Terminals: Blade-style
- Poles: 2
- Current Rating: 10 Amp
- Voltage: 24 VDC
- Frequency: 50/60 Hz
- Indicator: On/off LED option
- Style: Open, mountable
- Dimensions (H x L x W): 35mm x 28mm x 28mm
- Weight: 0.1 kg
Key Features
- Miniature ice cube relay design
- Square base with blade-style terminals
- On/off indicator with LED option
- 2 pole configuration
- 10 amp current rating
- Operates at 24 VDC, 50/60 Hz
- Open style and mountable
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control systems
- Automation equipment
- General electrical switching applications
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with LED indicator for efficient operation
- Durable design reduces replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HC22Z244 Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and automation control applications.
