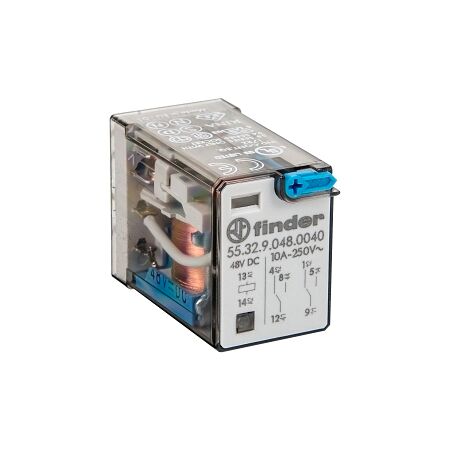

Miniature General Purpose Relay 10A 2 CO | 48V DC Coil | Mech Indicator by NHP
Miniature general purpose relay with 10A nominal current and 48V DC coil—ideal for industrial automation and control panels. Built for reliable switching, with mechanical indicator and plug-in connection for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 55 Series Miniature General Purpose Relay 10A 2 CO 48V DC Coil with PB plus Mech Indicator
Brand: NHP
SKU: 5532004048VDC
Alternatively Known As: Miniature Relay, General Purpose Relay, Finder Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage AC: 400 V
- Rated Switching Power at AC-1: 2500 VA
- Rated Switching Power at AC-15 (230 V): 500 VA
- Breaking Capacity at DC-1 (30 V): 10 A
- Control Supply Voltage (DC): 48 V
- Electrical Life: 200,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 27.7mm x 36.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- 10A nominal current with 2 changeover contacts.
- Mechanical indicator for operational status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 55 Series Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
