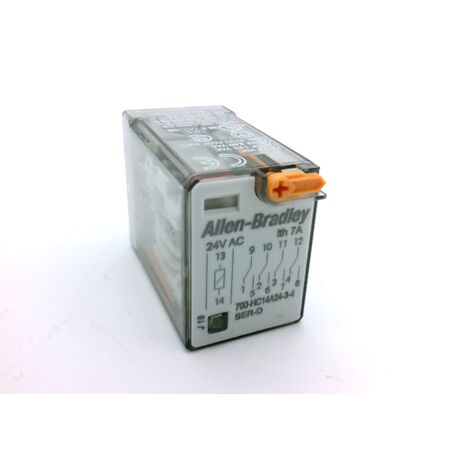

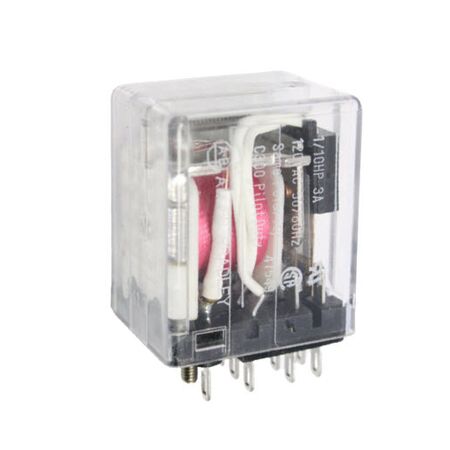

Miniature General Purpose Relay | 4 Pole Configuration | 7 Amp Current Rating | 24 VAC Coil Voltage | by Allen-Bradley
The Miniature General Purpose Relay is designed for reliable performance in industrial control systems and automation equipment. Featuring a 4 pole, 4 PDT configuration with a 7 Amp current rating and 24 VAC coil voltage, this relay ensures efficient electrical switching. With push-to-test and manual override functions, it's perfect for general electrical applications, providing ease of use and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Relay Type: Miniature, square base
- Poles: 4 pole, 4 PDT
- Current Rating: 7 Amp
- Coil Voltage: 24 VAC
- Terminals: 14 blade terminals
- Frequency: 50/60 Hz
- Features: Push-to-test, manual override, pilot light
- Mounting Style: Open style, mountable
- Dimensions (H x L x W): 60mm x 50mm x 45mm
- Weight: 0.2 kg
Key Features
- Miniature square base design
- 4 pole, 4 PDT configuration
- 7 Amp current rating
- 24 VAC coil voltage
- 14 blade terminals for easy wiring
- 50/60 Hz frequency compatibility
- Push-to-test and manual override functions
- Pilot light indicator
- Open style mountable relay
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- General electrical switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 700HC14A2434 Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and automation control applications.
