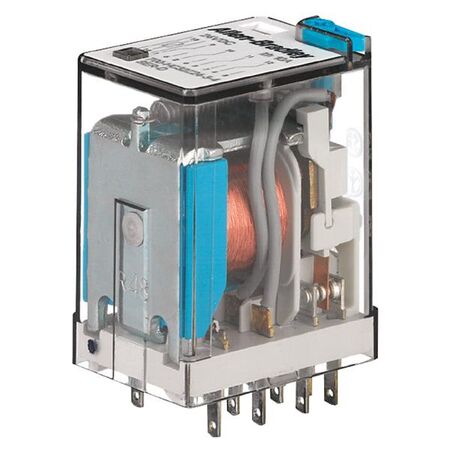

Miniature General Purpose Relay | 4 Pole Configuration | 7 Amp Current Rating | Pilot Light Included | by Allen-Bradley
The Miniature General Purpose Relay is designed for versatile applications, featuring a 4 pole, 4 PDT configuration and 14 blade terminals for easy connections. With a 7 Amp current rating and 6 VAC coil voltage, this relay is perfect for industrial control systems and automation equipment, ensuring reliable performance in general electrical switching tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Configuration: 4 pole, 4 PDT
- Terminals: 14 blade terminals
- Current Rating: 7 Amp
- Coil Voltage: 6 VAC
- Frequency: 50/60 Hz
- Mounting Style: Open style, mountable
- Includes pilot light
- Dimensions (H x L x W): 60mm x 50mm x 45mm
- Weight: 0.2 kg
Key Features
- Miniature square base design
- 4 pole, 4 PDT configuration
- 14 blade terminals for versatile connections
- 7 Amp current rating
- 6 VAC coil voltage
- 50/60 Hz frequency
- Pilot light included
- Open style mountable relay
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- General electrical switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 700HC14A244 Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and automation control applications.
