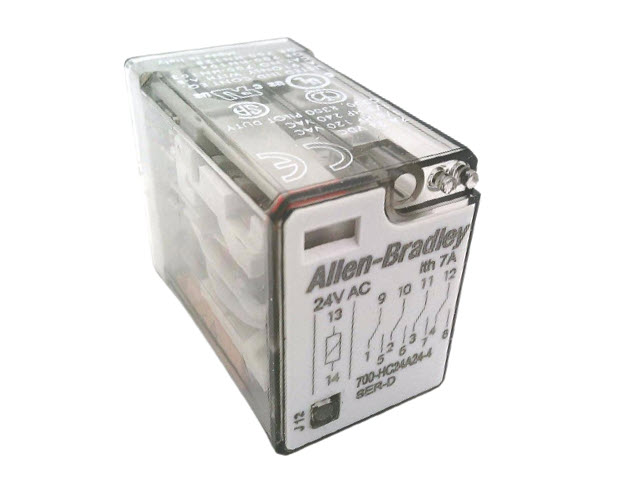

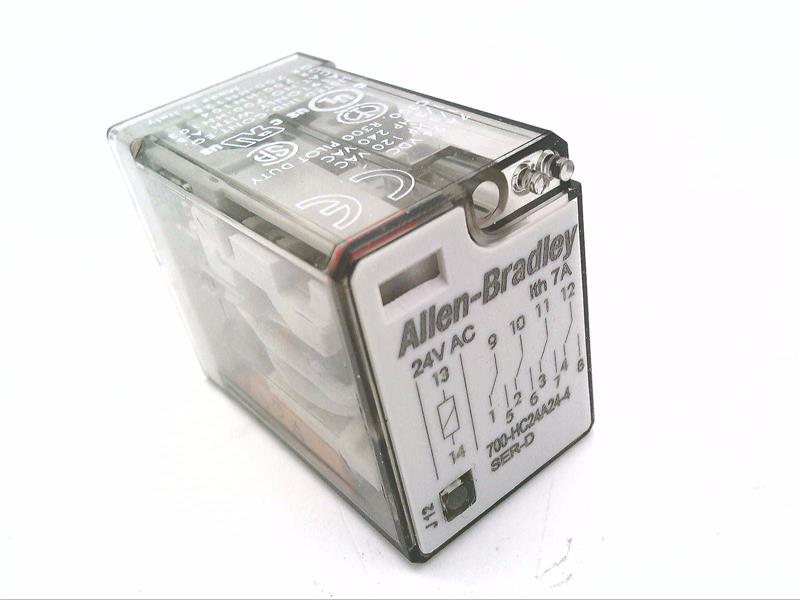

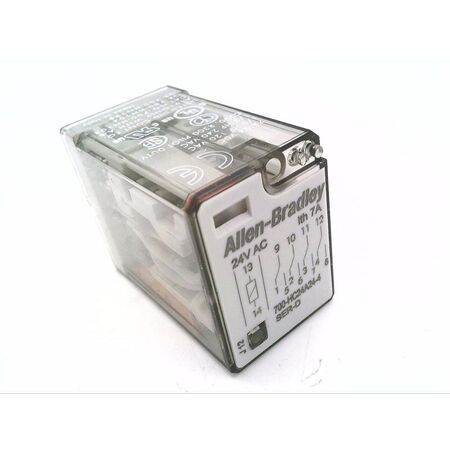

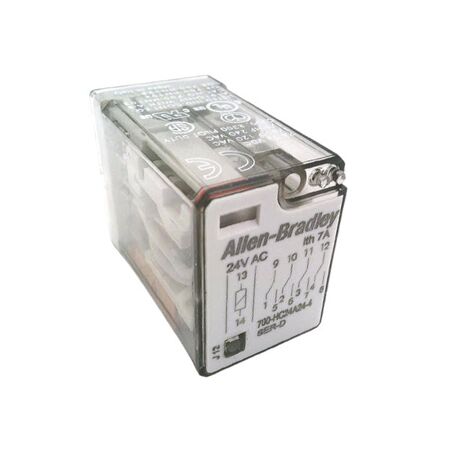

Miniature General Purpose Relay | 4-Pole Design | 7A Current Rating | LED Indicator | by Allen-Bradley
The Miniature General Purpose Relay is designed for versatile applications, featuring a 4-pole configuration and a 7A current rating. Ideal for industrial control systems and automation equipment, this relay operates at 24V AC with a frequency of 50/60 Hz. Its compact design and LED status indicator enhance functionality, making it a reliable choice for general electrical switching needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Miniature ice cube relay
- Poles: 4-pole
- Current Rating: 7 A
- Coil Voltage: 24 V AC
- Frequency: 50/60 Hz
- Terminals: Blade-style
- Base: Square
- Indicator: On/off with LED option
- Dimensions (H x L x W): 35mm x 40mm x 28mm
- Weight: 0.1 kg
Key Features
- Miniature ice cube relay design
- General purpose use
- Square base with blade-style terminals
- On/off indicator
- 4-pole configuration
- 7 A current rating
- 24 V AC, 50/60 Hz operation
- LED option for status indication
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- General electrical switching applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient coil operation minimizes power consumption
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 700HC24A244 Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and automation control applications.
