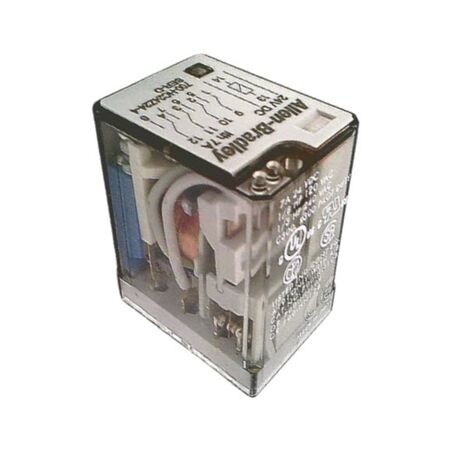

Miniature General Purpose Relay | 4-Pole Configuration | 7A Current Rating | LED Indicator Option | by Allen-Bradley
The Miniature General Purpose Relay is designed for reliable control in industrial automation, featuring a 4-pole configuration and a 7A current rating. With a square base and blade-style terminals, it includes an on/off LED indicator for easy monitoring. Ideal for general electrical switching applications, this relay ensures efficient operation with a 24V DC coil voltage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Relay Type: Miniature Ice Cube
- Base Type: Square
- Terminal Style: Blade
- Indicator: On/Off LED option
- Poles: 4
- Current Rating: 7 A
- Coil Voltage: 24 V DC
- Frequency: 50/60 Hz
- Mounting: Mountable
- Dimensions (H x L x W): 35mm x 28mm x 28mm
- Weight: 0.1 kg
Key Features
- Miniature ice cube relay design
- Square base with blade-style terminals
- On/off indicator with LED option
- 4-pole configuration
- 7 Amp current rating
- 24 V DC coil voltage
- 50/60 Hz frequency compatibility
- Mountable design
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper wiring and safety compliance.
Applications
- Industrial control systems
- Automation equipment
- General electrical switching applications
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption coil reduces energy usage
- Durable design extends product life, reducing waste
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 700HC24Z244 Miniature General Purpose Relay is available for immediate purchase, ideal for industrial and automation control applications.
