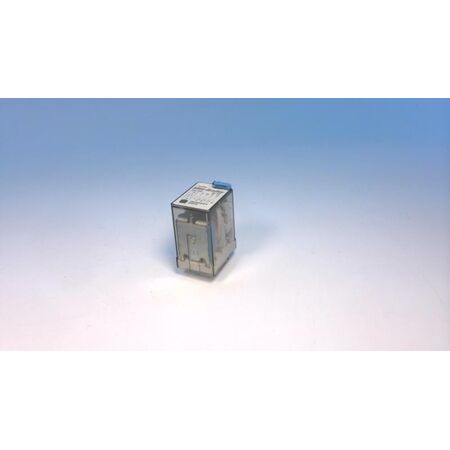

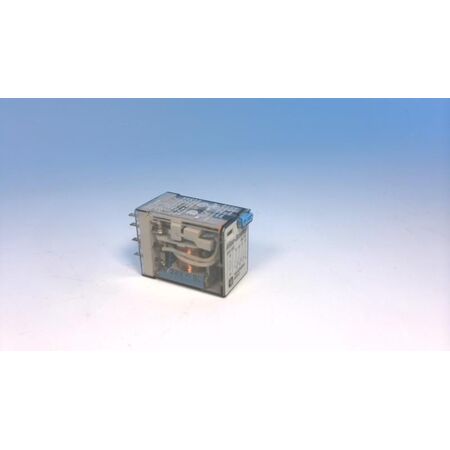

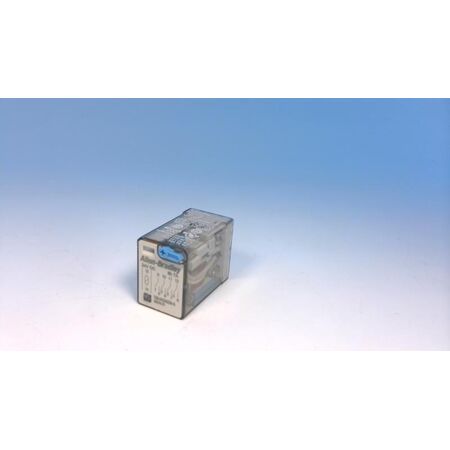

Miniature General Purpose Relay | 4-Pole Design | 7 Amp Current Rating | 24 VDC Coil | by Allen-Bradley
The Miniature General Purpose Relay is designed for reliable performance in industrial control systems and automation equipment. Featuring a 4-pole configuration, 7 amp current rating, and a 24 VDC coil voltage, this relay includes an on/off indicator and push-to-test functionality. Ideal for general electrical switching applications, it ensures efficient operation and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Miniature ice cube relay
- Base: Square
- Terminals: Blade-style
- Poles: 4
- Current Rating: 7 Amp
- Coil Voltage: 24 VDC
- Frequency: 50/60 Hz
- Features: On/off indicator, push-to-test, manual override
- Style: Open, mountable
- Dimensions (H x L x W): 50mm x 45mm x 35mm
- Weight: 0.1 kg
Key Features
- Miniature ice cube relay design
- Square base with blade-style terminals
- On/off indicator for status monitoring
- 4-pole configuration
- 7 amp current rating
- 24 VDC coil voltage
- 50/60 Hz frequency compatibility
- Push-to-test and manual override functions
- Open style and mountable
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- General electrical switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient coil operation minimizes power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HC24Z243 Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and automation control applications.
