Miniature General Purpose Relay 7A 4CO | 110V AC Coil | LED & Mech Ind by NHP
Miniature general purpose relay with 7A 4CO and 110V AC coil—ideal for industrial automation and control panels. Built for reliability, with LED indication and mechanical indicator for enhanced visibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

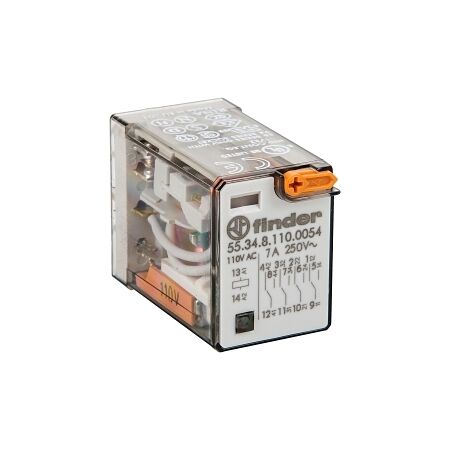

Product Name/Title: Finder 55 Series Miniature General Purpose Relay 7A 4CO 110V AC Coil with PB plus LED plus Mech Ind
Brand: NHP
SKU: 55340054110VAC
Alternatively Known As: Miniature Relay, General Purpose Relay, Finder Relay
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 250 V
- Rated Switching Power at AC 1: 1750 VA
- Rated Switching Power at AC 15 230 V: 350 VA
- Breaking Capacity at DC 1 30 V: 7 A
- Breaking Capacity at DC 1 110 V: 0.25 A
- Control Supply Voltage at AC 50 Hz: 110 V
- Control Supply Voltage at AC 60 Hz: 110 V
- Electrical Life: 150,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 27.7mm x 36.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- 4 changeover contacts for versatile switching options.
- LED indication for operational status.
- Mechanical indicator for enhanced visibility.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant safety and performance standards.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 55 Series Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
