Miniature General Purpose Relay 7A 4CO | 24V AC Coil | Gold Contacts by NHP
Miniature general purpose relay with 7A current and 24V AC coil—ideal for industrial automation and control panels. Built for high reliability, with gold contacts and LED status indication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

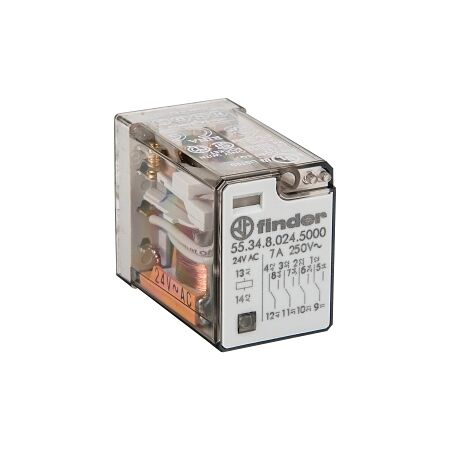

Product Name/Title: Finder 55 Series Miniature General Purpose Relay 7A 4CO 24V AC Coil Gold Contacts
Brand: NHP
SKU: 5534500024VAC
Alternatively Known As: Miniature Relay, General Purpose Relay, Finder Relay
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 250 V
- Rated Switching Power at AC 1: 1750 VA
- Rated Switching Power at AC 15 (230 V): 350 VA
- Breaking Capacity at DC 1 (30 V): 7 A
- Breaking Capacity at DC 1 (110 V): 0.25 A
- Control Supply Voltage: 24 V AC
- Electrical Life: 150,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 28mm x 37mm x 21mm
- Weight: 0.1 kg
Key Features
- 4 changeover contacts for versatile switching options.
- LED indication for operational status.
- High electrical life rated at 150,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 55 Series Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
