Miniature General Purpose Relay 7A 4CO | 24V DC Coil | LED & Mech Indicator by NHP

BRAND: NHP
SKU: 5534009024VDC
$36.70 List price: $45.70
+ −
30 Days Return Delivery Options
Miniature general purpose relay with 7A nominal current and 4 changeover contacts—ideal for industrial automation and commercial HVAC systems. Built for reliable switching, with LED status indication and mechanical visibility.

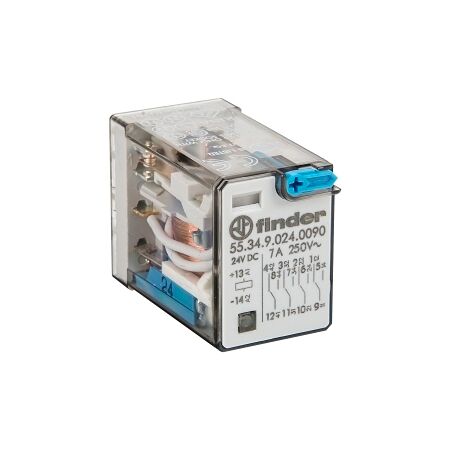

Product Name/Title: Finder 55 Series Miniature General Purpose Relay 7A 4CO 24V DC Coil with PB plus LED plus Mech Ind

Brand: NHP

SKU: 5534009024VDC

Alternatively Known As: Miniature Relay, General Purpose Relay, Finder Relay

Technical Specifications
  • Nominal Current: 7 A
  • Nominal Voltage AC: 250 V
  • Max Rated Operation Voltage (AC): 250 V
  • Rated Switching Power at AC-1: 1750 VA
  • Rated Switching Power at AC-15 (230 V): 350 VA
  • Breaking Capacity at DC-1 (30 V): 7 A
  • Breaking Capacity at DC-1 (110 V): 0.25 A
  • Control Supply Voltage (DC): 24 V
  • Electrical Life at Un in Service: 150,000 cycles
  • Mechanical Life: 50,000,000 cycles
  • Operating Temperature: -40 to 85 °C
  • Dimensions (H x L x W): 27.7mm x 36.7mm x 20.7mm
  • Weight: 0.1 kg
Key Features
  • 7A nominal current with 4 changeover contacts.
  • LED indication for operational status.
  • Mechanical indicator for enhanced visibility.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, control panels
  • Commercial: HVAC systems, lighting control
  • General: Any application requiring reliable switching
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Finder 55 Series Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.

5534009024VDC-AU-General-Purpose-Relay-Datasheet.pdf (5534009024VDC-AU-General-Purpose-Relay-Datasheet.pdf, 523 Kb) [Download]
