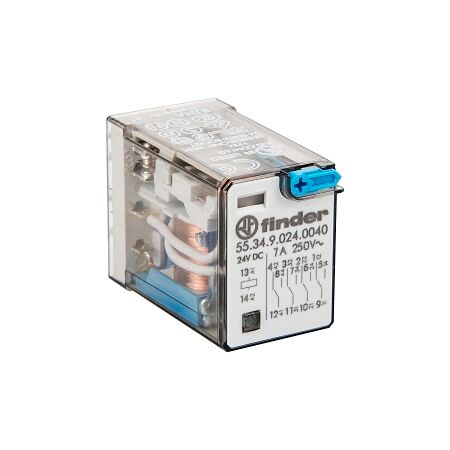

Miniature General Purpose Relay 7A 4CO 24VDC PB Mech Indicator NHP
NHP Miniature General Purpose Relay 7A 4CO 24VDC PB. Ideal for industrial control and switching circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 250 V
- Rated Switching Power at AC-1: 1750 VA
- Rated Switching Power at AC-15 (230 V): 350 VA
- Breaking Capacity at DC-1 (30 V): 7 A
- Control Supply Voltage (DC): 24 V
- Electrical Life: 150,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 27.7mm x 36.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- 4 changeover contacts for versatile switching options.
- Mechanical indicator for operational status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 55 Series Miniature General Purpose Relay is available now for immediate purchase, suitable for various industrial and commercial applications.
