Miniature General Purpose Relay 7A 4CO | 32V DC Coil | LED & Mech Ind by NHP
Miniature general purpose relay with 7A 4CO and 32V DC coil—ideal for industrial automation and control panels. Built for reliable switching, with LED indication and mechanical indicator for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

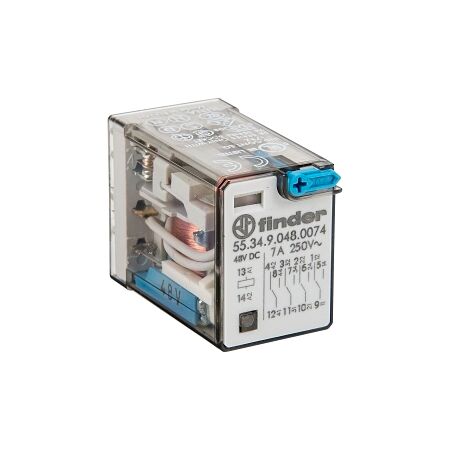

Product Name/Title: Finder 55 Series Miniature General Purpose Relay 7A 4CO 32V DC Coil with PB plus LED plus Mech Ind
Brand: NHP
SKU: 5534007432VDC
Alternatively Known As: Miniature Relay, General Purpose Relay, Finder Relay
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 250 V
- Rated Switching Power at AC 1: 1750 VA
- Rated Switching Power at AC 15 (230 V): 350 VA
- Breaking Capacity at DC 1 (30 V): 7 A
- Breaking Capacity at DC 1 (110 V): 0.25 A
- Control Supply Voltage (DC): 32 V
- Electrical Life: 150,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 27.7mm x 36.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- 4 changeover contacts for versatile switching options.
- LED indication for operational status.
- Mechanical indicator for easy monitoring.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 55 Series Miniature General Purpose Relay is available now for immediate purchase, suitable for various industrial and commercial applications.
