Miniature GP Relay 10A 2CO | 240V AC Coil | LED & Mech Indicator by NHP
Miniature GP relay with 240V AC coil and LED plus mechanical indicator—ideal for industrial automation and control panels. Built for high electrical and mechanical life cycles, with easy plug-in connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

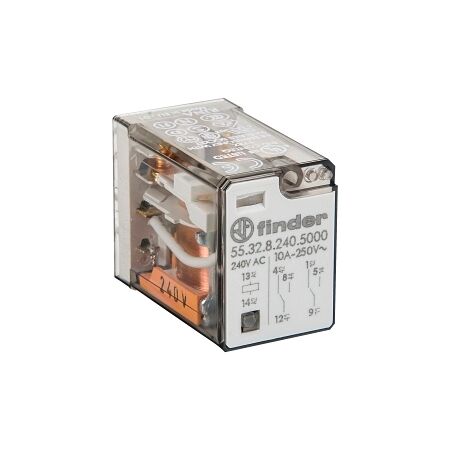

Product Name/Title: Finder 55 Series Miniature GP Relay 10A 2CO 240V AC Coil PB plus LED plus Mech Indi Gold Cont
Brand: NHP
SKU: 55325000240VAC
Alternatively Known As: Miniature Relay, GP Relay, Finder Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC 1: 2500 VA
- Rated Switching Power at AC 15 (230 V): 500 VA
- Breaking Capacity at DC 1 (30 V): 10 A
- Breaking Capacity at DC 1 (110 V): 0.25 A
- Control Supply Voltage: 240 V AC
- Electrical Life: 200,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 28mm x 37mm x 21mm
- Weight: 0.1 kg
Key Features
- General purpose relay with LED indication and mechanical indicator.
- Plug-in connection for easy installation.
- High electrical and mechanical life cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Long operational life reduces waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 55 Series Miniature GP Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
