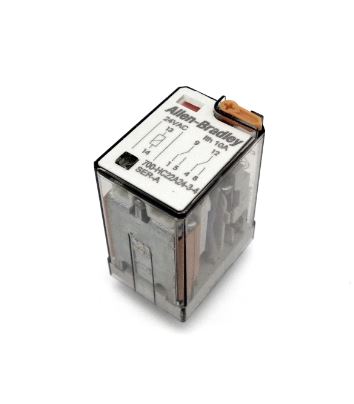

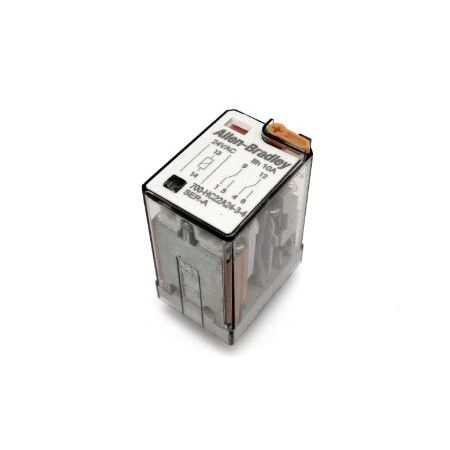

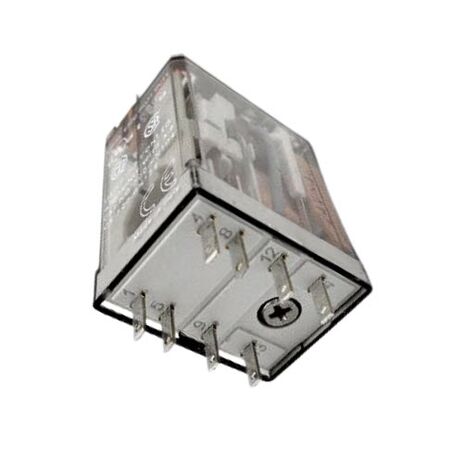

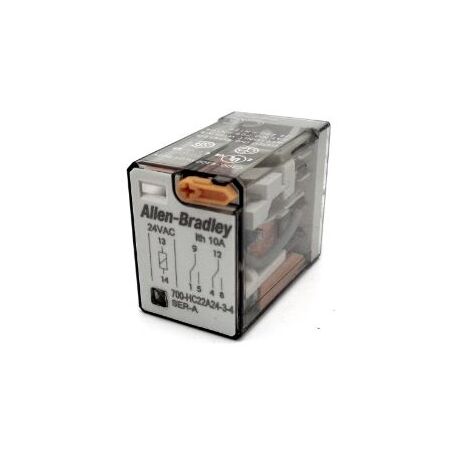

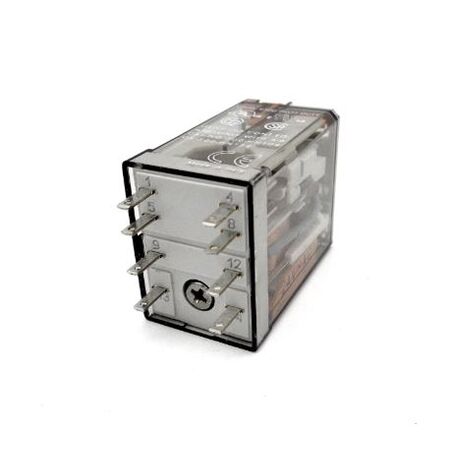

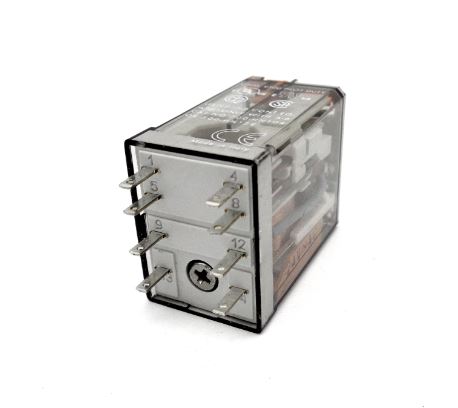

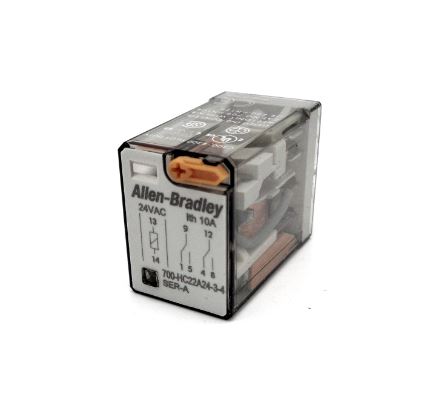

Miniature Ice Cube Relay 2 Pole 10 Amp 24 VAC | On/Off Indicator & Manual Override | by Allen-Bradley
The Miniature Ice Cube Relay by Allen-Bradley features a 2 pole design with a 10 amp capacity and operates at 24 VAC. Ideal for industrial control systems and automation equipment, it includes an on/off indicator, push-to-test, and manual override functions. This relay is perfect for general-purpose electrical switching, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Miniature ice cube relay
- Base: Square
- Terminals: Blade-style
- Poles: 2
- Current Rating: 10 Amp
- Voltage: 24 VAC
- Frequency: 50/60 Hz
- Features: On/off indicator, push-to-test, manual override, LED option
- Style: Open, mountable
- Dimensions (H x L x W): 50mm x 45mm x 35mm
- Weight: 0.1 kg
Key Features
- Miniature ice cube relay design
- Square base with blade-style terminals
- On/off indicator with LED option
- 2 pole, 10 amp capacity
- 24 VAC, 50/60 Hz operation
- Push-to-test and manual override functions
- Open style and mountable
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control systems
- Automation equipment
- General purpose electrical switching
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HC22A2434 Miniature Ice Cube Relay is available for immediate purchase, ideal for industrial and general electrical control applications.
