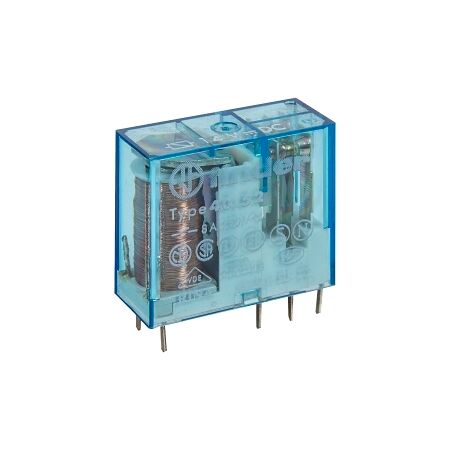

Miniature PCB Relay 8A 2 Changeover | 14V DC Coil | Compact Design by NHP
Miniature PCB relay with 8A current and 14V DC coil—ideal for automation and control panels. Built for high electrical life, with compact design for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 40 Series Miniature Printed Circuit Board Relay 8A 2 Changeover 14V DC Coil
Brand: NHP
SKU: 405214VDC
Alternatively Known As: Miniature Relay, PCB Relay, Finder Relay
Technical Specifications
- Nominal Current: 8 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Number of Contacts: 2 Changeover
- Rated Switching Power at AC 1: 2000 VA
- Rated Switching Power at AC 15 (230 V): 750 VA
- Breaking Capacity at DC 1 (30 V): 8 A
- Breaking Capacity at DC 1 (110 V): 0.3 A
- Control Supply Voltage (DC): 14 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -45 to 85 °C
- Dimensions (H x L x W): 29mm x 25mm x 12.4mm
- Weight: 0.1 kg
Key Features
- Compact design suitable for PCB mounting.
- High electrical life of 100,000 cycles.
- Polarity-free drive for versatile applications.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 40 Series Miniature PCB Relay 8A 14V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
