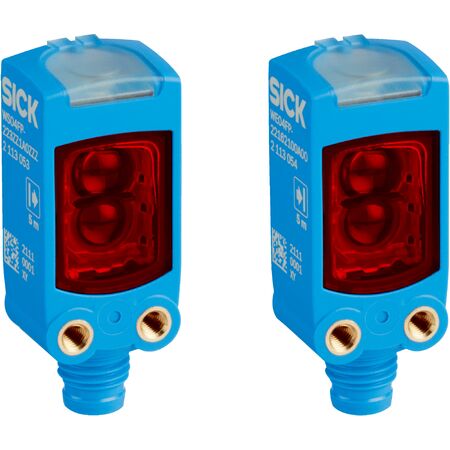

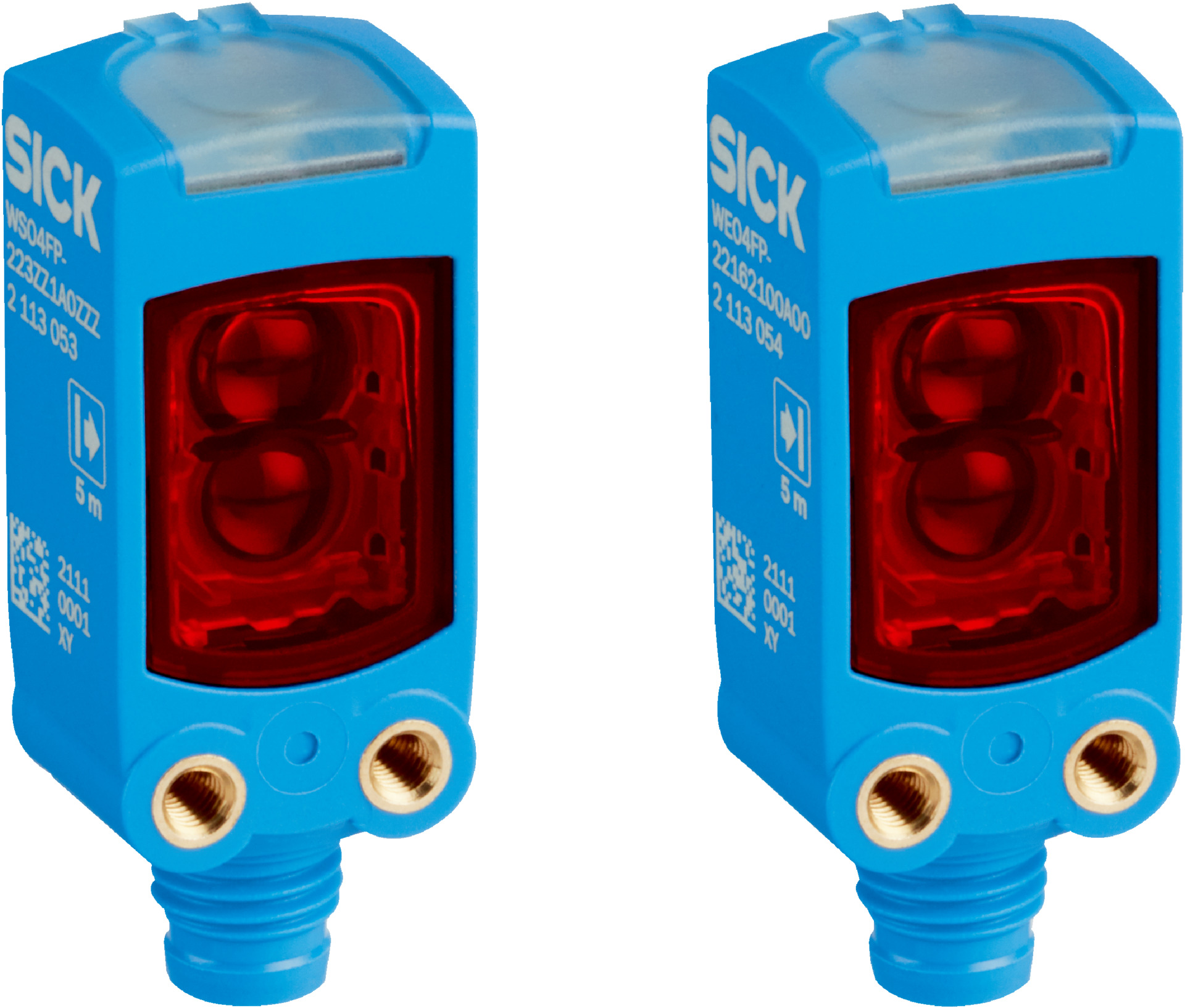

Miniature Photoelectric Sensor W4F | 1.5m Sensing Range | Push-Pull Output | IP66/IP67 Rated | by SICK
The Miniature Photoelectric Sensor W4F is designed for precise object detection with a sensing range of up to 1.5 meters. Featuring a push-pull output type and light/dark switching mode, this sensor is perfect for industrial automation applications. With its robust IP66/IP67 rated housing and built-in BluePilot alignment aid, it ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Photoelectric Sensor W4F | 1.5m Sensing Range | Push-Pull Output | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 2124453
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Miniature photoelectric sensor, W4F sensor, WEO4FP sensor
Technical Specifications
- Sensing range: 0 to 1.5 m (recommended 0 to 1.2 m)
- Light source: PinPoint LED, visible red light at 635 nm wavelength
- Output type: Push-pull (PNP/NPN)
- Switching mode: Light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Connection type: M8, 3-pin connector
- Housing material: Plastic VISTAL®
- Front screen material: Plastic PMMA
- Operating temperature: -40°C to +60°C
- Enclosure rating: IP66 and IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor principle
- Sensing range up to 1.5 meters
- Push-pull output type with PNP and NPN options
- Light/dark switching mode
- Built-in BluePilot alignment aid
- High switching frequency up to 1000 Hz
- IP66 and IP67 rated for dust and water protection
- Robust plastic VISTAL® housing with PMMA front screen
- Operating temperature range from -40°C to +60°C
- Short-circuit, overcurrent, and reverse polarity protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and secure connection using the M8 connector.
Applications
- Industrial automation for object detection
- Conveyor systems monitoring
- Packaging machinery
- Material handling and sorting
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Durable IP66/IP67 housing reduces environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK Miniature Photoelectric Sensor W4F WEO4FP-21311700ZZZ is available for immediate purchase, ideal for industrial automation and object detection applications.
