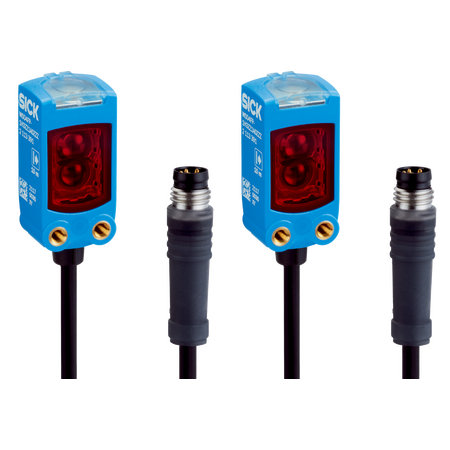

Miniature photoelectric sensors W4F, WSO4FP-313ZZ6A0ZZZ Sensing range max.: 0…2 m, depending on receiver Sensor principle: Through-beam photoelectric, consisting of sender with testinput Connection type: Cable with connector M8, 3-pin, 110 mm Light source

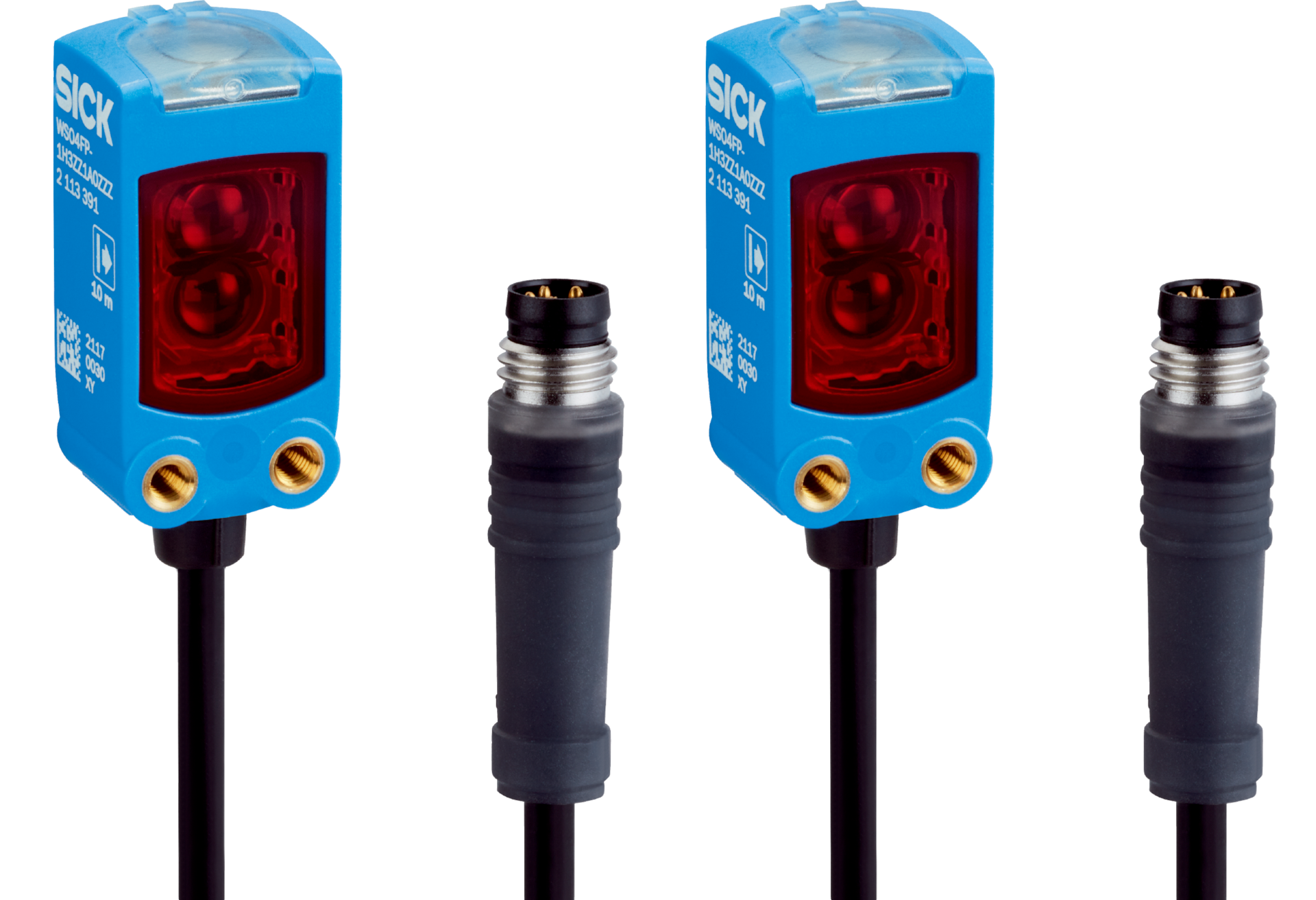

The SICK Miniature Photoelectric Sensor W4F WSO4FP-313ZZ6A0ZZZ is a through-beam sensor with a sensing range up to 2 meters, featuring a visible red PinPoint LED, robust VISTAL® housing, and high switching frequency for reliable industrial object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature photoelectric sensors W4F, WSO4FP-313ZZ6A0ZZZ Sensing range max.: 0…2 m, depending on receiver Sensor principle: Through-beam photoelectric, consisting of sender with testinput Connection type: Cable with connector M8, 3-pin, 110 mm Light source: PinPoint LED, visible red light Housing material: VISTAL®
Brand: SICK
SKU: 2126426
Alternatively Known As: Through-beam photoelectric sensor, Miniature photoelectric sensor, SICK W4F sensor, WSO4FP sensor, Industrial photoelectric sensor
Technical Specifications
- Sensing range: 0 to 2 meters
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load
- Output type: Push-pull PNP/NPN, dark switching
- Output current max: ≤ 100 mA
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic VISTAL®
- Connection: Cable with M8 3-pin connector, 110 mm length
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor principle
- Sensing range up to 2 meters
- PinPoint LED visible red light source with 635 nm wavelength
- High switching frequency of 1000 Hz
- IP66 and IP67 rated for dust and water protection
- Robust plastic VISTAL® housing with flat design
- LED indicators for alignment, power, and object detection
- Short response time of ≤ 500 µs
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Wide ambient operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Packaging machinery
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable IP66/IP67 rated housing reduces environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK Miniature Photoelectric Sensor W4F WSO4FP-313ZZ6A0ZZZ is available for immediate purchase, ideal for industrial automation and object detection applications.
