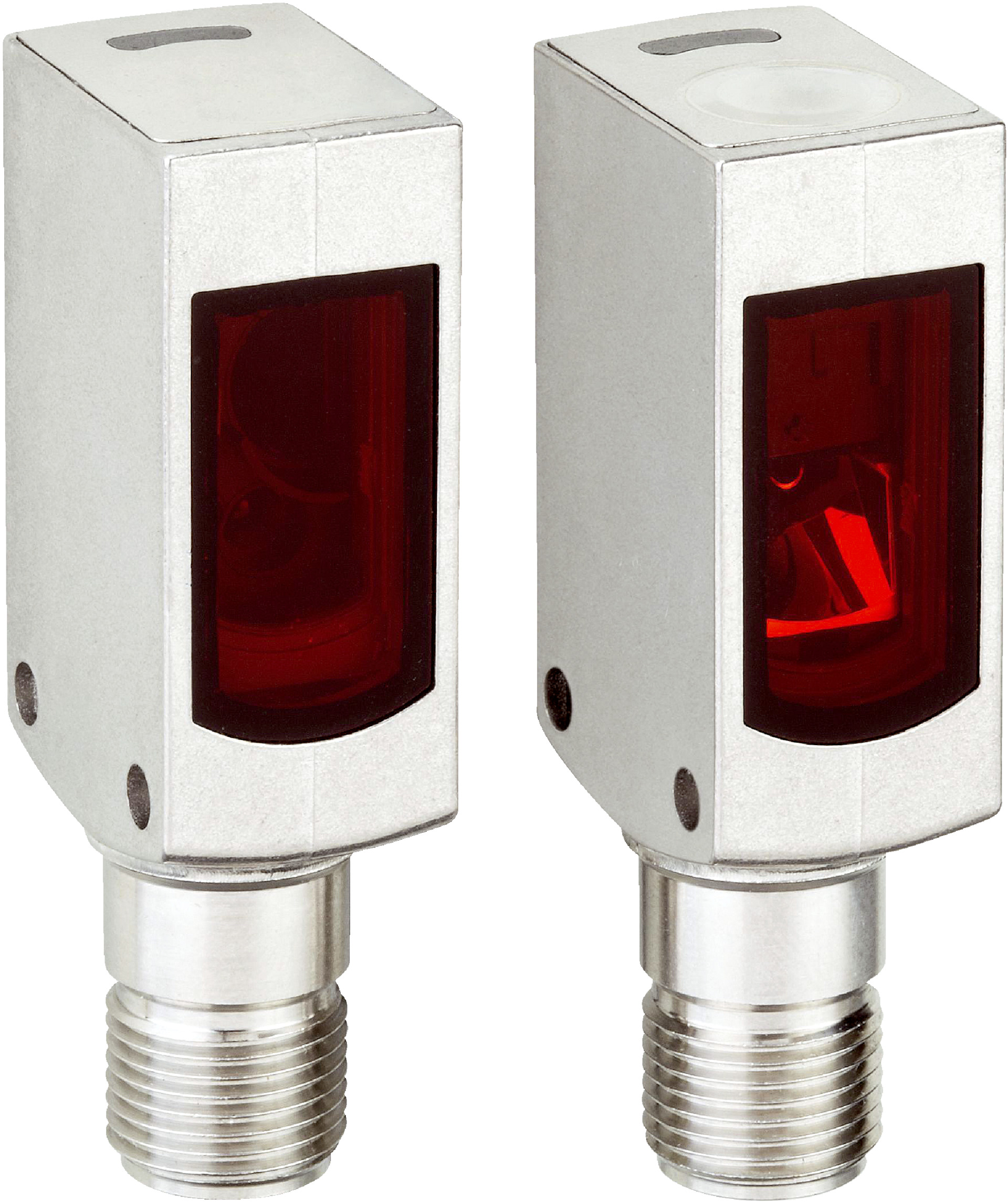

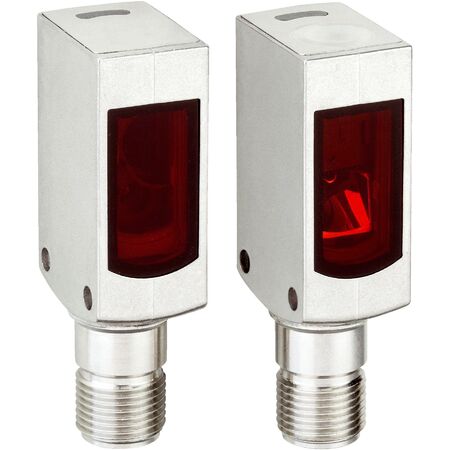

Miniature Photoelectric Through Beam Sensor | 60m Scanning Distance | Stainless Steel Wash-down Design | PNP Output | by SICK
The Miniature Photoelectric Through Beam Sensor is designed for precise object detection in hygienic environments, featuring a scanning distance of up to 60 meters and a durable stainless steel wash-down housing. With a single teach-in button for easy adjustment and PNP output, this sensor is perfect for industrial automation applications requiring reliable performance and robust protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Photoelectric Through Beam Sensor | 60m Scanning Distance | Stainless Steel Wash-down Design | PNP Output | by SICK
Brand: SICK
SKU: 2064102
Alternatively Known As: Photoelectric Through Beam Sensor, Laser Sensor, Washdown Photoelectric Sensor, Stainless Steel Sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 60 m
- Light source: Laser, visible red light (650 nm)
- Light spot size: Ø 1 mm at 500 mm distance
- Laser class: 1 (IEC 60825-1 compliant)
- Adjustment: Single teach-in button
- Housing: Stainless steel V4A (1.4404, 316L), slim design
- Connection: Male M8, 4-pin connector
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 55mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 60 meters
- Single teach-in button for easy adjustment
- Washdown stainless steel housing for hygienic environments
- IP66, IP67, IP68, IP69K rated for robust protection
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- PNP output with light/dark switching mode
- Laser class 1 safety compliant
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Detecting small objects
- Industrial automation requiring precise object detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient laser technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WE4SL-3P2232V Miniature Photoelectric Through Beam Sensor is available for immediate purchase, ideal for industrial automation and hygienic washdown applications.
